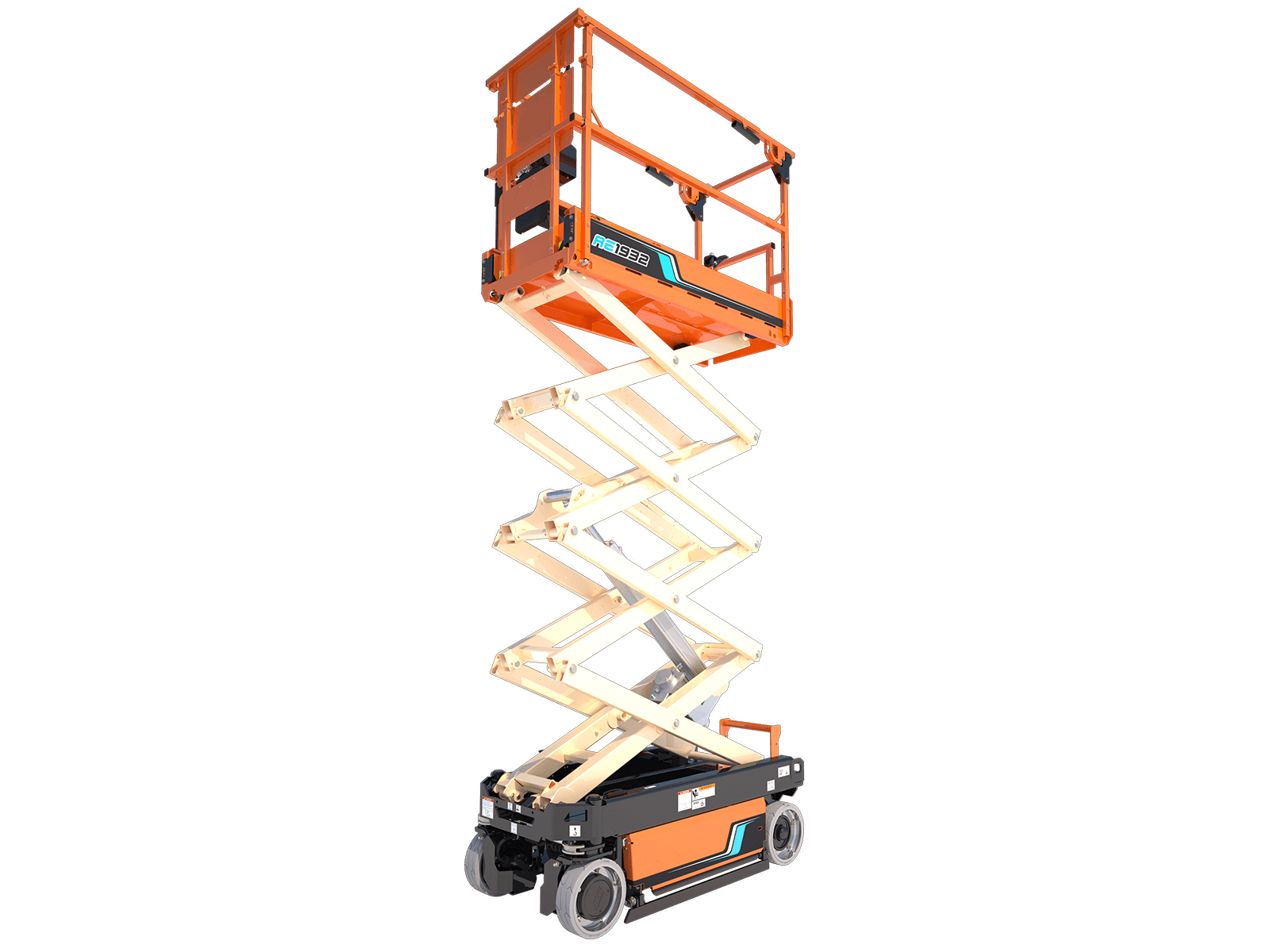

AE1932

AE1932

Maximum work height5.79 m

Safety working load274.88 kg

Overview

Specifications

Related Products

Leave Message

Zero leaks. Zero emissions. Low noise. Experience clean operation and reduced maintenance with our DaVinci all-electric scissor lifts.


Key Features

  • Improved Cost of Ownership: This model sets a new industry benchmark with almost no maintenance, with a new diagnostic and analyzer tool that can be used on any smart device

  • Longer Battery Life: Class-leading, single lithium ion battery lasts the life of the machine

  • Faster Charging: Quick charge in five minutes for 100 ft of drive plus enough torque for loading

  • Smoother Operation: Efficient AC drive motors provide 4 mph stowed drive speed, while independent wheel motor control reduces tire wear and limits damage to sensitive flooring

  • Increased Efficiency: Fully electric and highly efficient for zero emissions and zero leaks

  • ANSI A92.20 Compliance: Load sensing system, self-closing gate and QuikFold rail system

  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware


Specifications

Key Specs

  • Platform Height: 19 ft / 5.79 m

  • Platform Capacity: 606 lb / 274.88 kg

  • Machine Width: 2 ft 8 in. / 0.81 m

  • Drive Speed - Platform Lowered: 4 mph / 6.44 km/h

General
BrakesMulti-Disc Friction
Machine Weight3450 lb / 1564.89 kg
Maximum Ground Bearing Pressure150 psi / 10.50 Kg/cm2
Performance
Drive Speed - Platform Elevated0.5 mph / 0.80 km/h
Drive Speed - Platform Lowered4 mph / 6.44 km/h
Drive System24V AC
Gradeability25 %
Lift Time24 sec.
Lower Time26 sec.
Maximum Drive Height19 ft / 5.79 m
Platform Capacity606 lb / 274.88 kg
Platform Capacity - Extension265 lb / 120.20 kg
Turning Radius - Inside0 in. / 0 m
Turning Radius - Outside5 ft 6 in. / 1.68 m
Dimensional Data
Ground Clearance3 in. / 0.07 m
Machine Height6 ft 11 in. / 2.11 m
Machine Height - Rails Folded6 ft 6 in. / 1.99 m
Machine Length5 ft 9 in. / 1.74 m
Machine Width2 ft 8 in. / 0.81 m
Platform Extension Length3 ft / 0.91 m
Platform Height - Lowered3 ft 3 in. / 0.98 m
Platform Railing Height3 ft 8 in. / 1.13 m
Platform Size25.4 x 62.7 in
Tire Size12.5 x 4 in.
Wheelbase4 ft 5 in. / 1.35 m
Reach Specifications
Platform Height19 ft / 5.79 m
Working Height25 ft / 7.62 m
