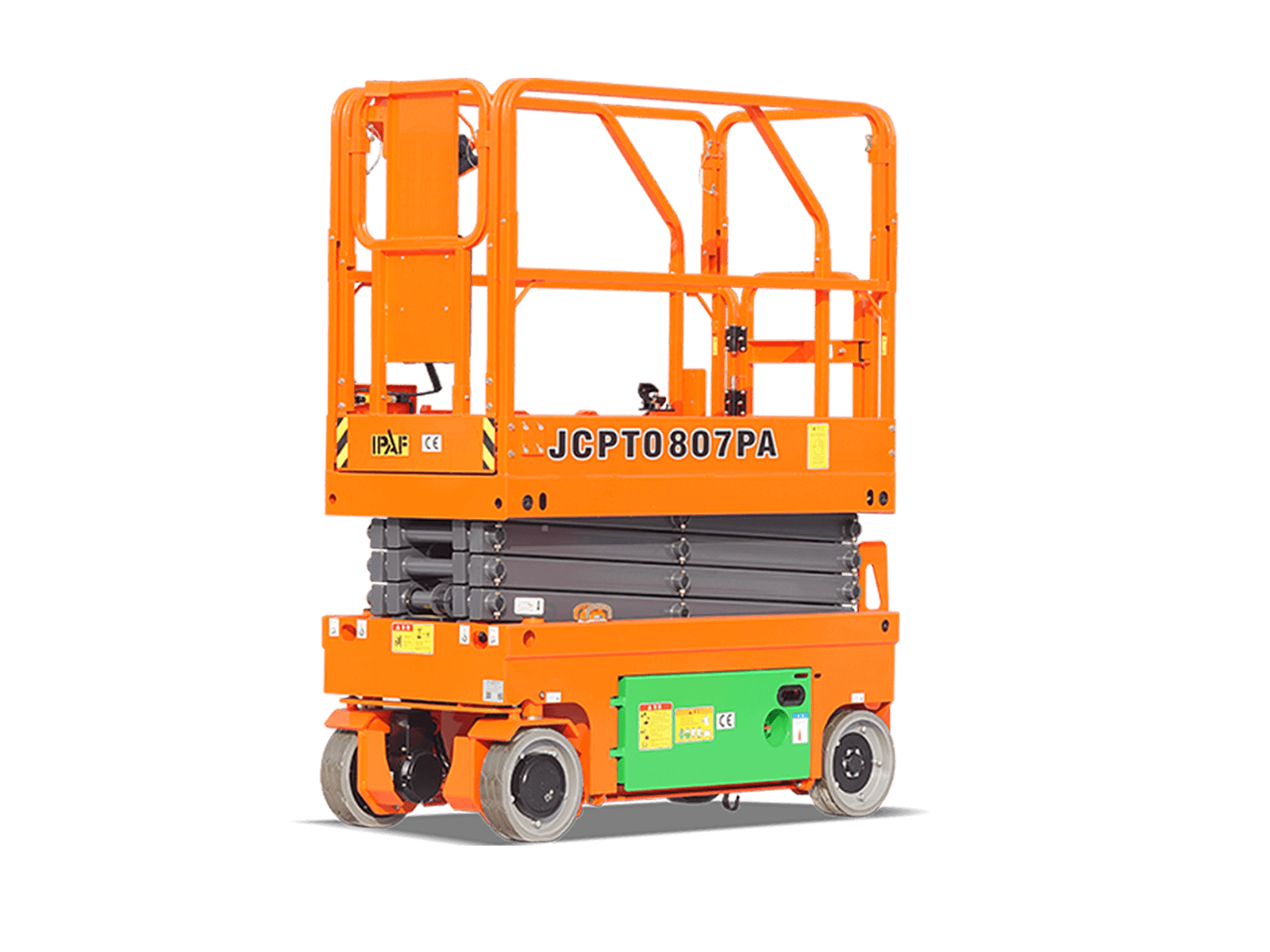

Key Features
Low energy consumption, the total transmission efficiency of the direct motor drive systems reaches 95%, more than 30% energy saving compared with the traditional hydraulic system.
Safer, higher levels of water and dust resistance, with built-in position sensors, real-time data monitoring of the full stroke. Synergistic drives enable temperature, load, and variable torque control, offering high active safety.
Easy maintenance, no hydraulic system, avoid system problems such as valve core stuck, oil leakage, oil change, high and low temperature efficiency reduction, equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.
More comfortable, full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of the hydraulic system, providing a better experience.
More environmentally friendly, the noise of the machine is lower than that with the hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.
Max. Working Height: 7.80m/25ft 7in
Max. Platform Height: 5.80m/19ft
Overall Length(With Ladder): 1.86m/6ft 1in
Overall Width: 0.76m/2ft 6in
Overall Height(Rails Up): 2.15m/7ft 1in
Overall Height(Rails Down): 1.83m/6ft
Platform Size(Length×Width): 1.67m×0.74m/5ft 6in×2ft 5in
Platform Extension Size: 0.90m/2ft 11in
S.W.L: 230kg/507lb
S.W.L On Extension: 113kg/249lb
Max. Occupants: 2/1
Overall Weight(Lead-acid Battery):1650kg/3637lb
Battery: 24V/185Ah
Charger: 24V/30A
