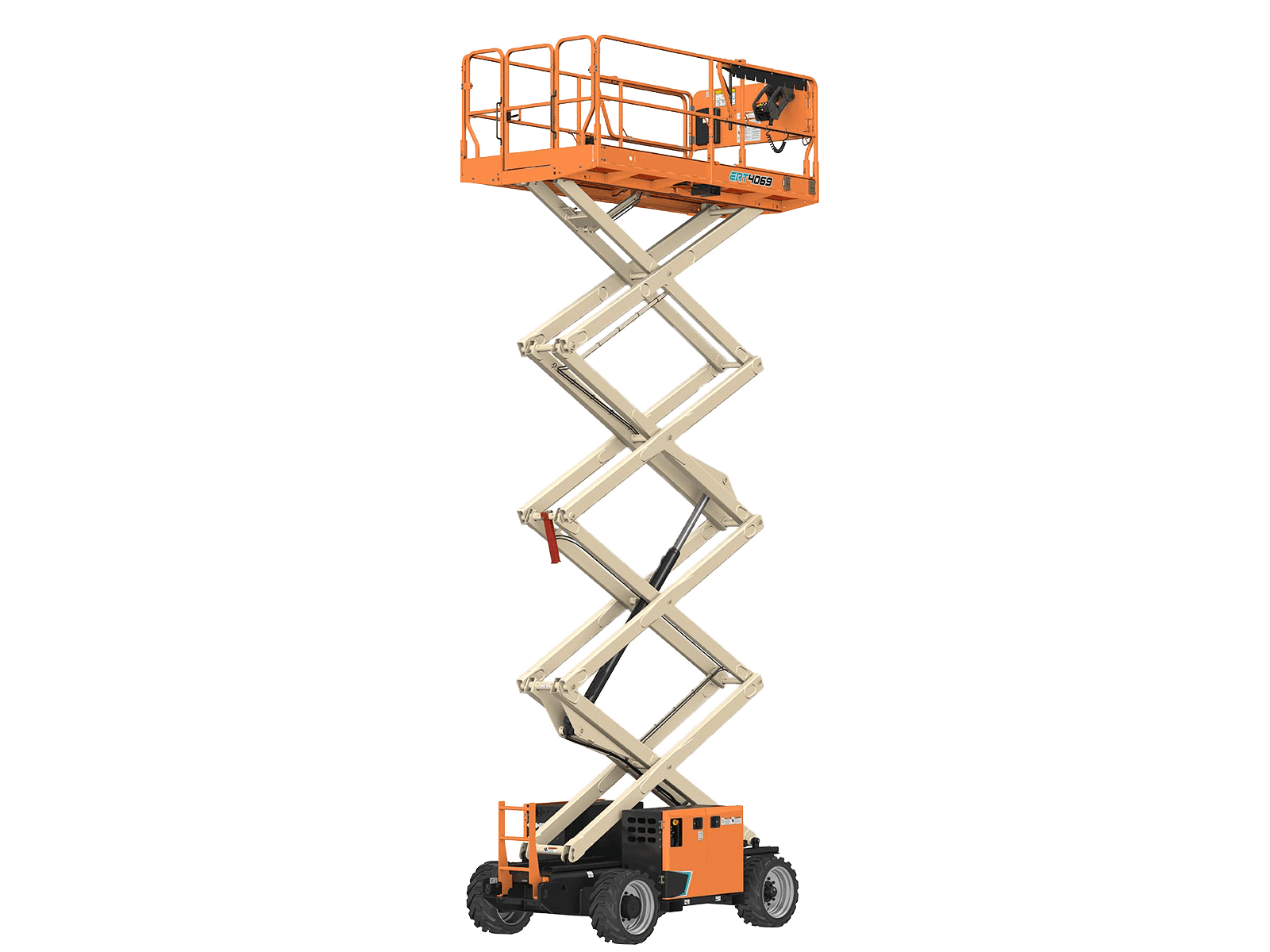

ERT Series electric rough terrain scissors offer a range of platform heights and can be driven at full height. Innovative features like an LCD platform control box and LiftSense technology help boost productivity.
Limit Trips Up and Down: Electric powered rough terrain models offer drive capability at full height.
Carry More to Height: The largest platform size in its class lets you bring more operators and tools to the job.
Use the Latest Technology: An LCD platform control box with LiftSense technology and USB charging delivers next-level, real-time productivity and service communication to the operator.
Reduce Maintenance Needs: Higher parts commonality and a maintenance-free 2WD AC drive system simplifies service across the rough terrain family.
Stay in Compliance: This ANSI A92.20 compliant lift features a load sensing system and the ability to calibrate the system without weight.
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Platform Height: 40 ft 3 in. / 12.27 m
Platform Capacity: 800 lb / 362.87 kg
Machine Width: 5 ft 9 in. / 1.76 m
Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
| General | |
| Capacity - Hydraulic Reservoir | 13.2 gal. / 49.97 L |
| Machine Weight | 10558 lb / 4789.03 kg |
| Performance | |
| Drive Speed - Platform Elevated | 0.3 mph / 0.48 km/h |
| Drive Speed - Platform Lowered | 3 mph / 4.83 km/h |
| Gradeability - 2WD | 35 % |
| Lift Time | 50 sec. |
| Lower Time | 48 sec. |
| Platform Capacity | 800 lb / 362.87 kg |
| Platform Capacity - Extension | 300 lb / 136.08 kg |
| Turning Radius - Outside | 14 ft 7 in. / 4.44 m |
| Dimensional Data | |
| Machine Height | 8 ft 7 in. / 2.62 m |
| Machine Length | 11 ft 7 in. / 3.53 m |
| Machine Width | 5 ft 9 in. / 1.76 m |
| Platform Dimension A | 10 ft 6 in. / 3.2 m |
| Platform Dimension B | 4 ft 9 in. / 1.45 m |
| Platform Extension Length | 3 ft 6 in. / 1.07 m |
| Platform Height - Lowered | 4 ft 10 in. / 1.47 m |
| Platform Railing Height | 3 ft 9 in. / 1.14 m |
| Tire Size | 26 x 12 Foam Filled |
| Wheelbase | 6 ft 9 in. / 2.07 m |
| Reach Specifications | |
| Platform Height | 40 ft 3 in. / 12.27 m |
| Working Height | 46 ft / 14.02 m |
