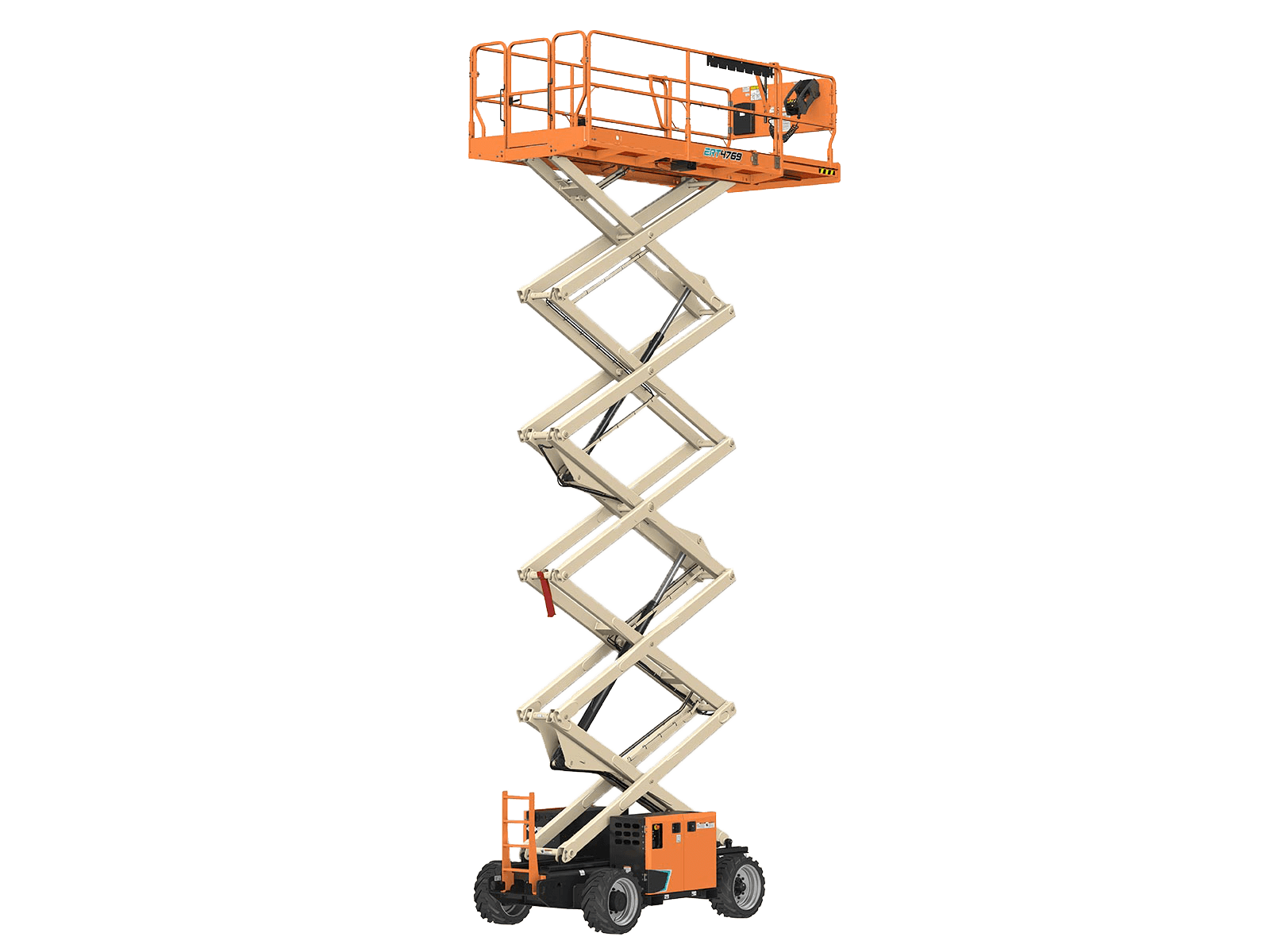

ERT4769

ERT4769

Maximum work height14.33 m

Safety working load362.87 kg

Overview

Specifications

Related Products

Leave Message

ERT Series electric rough terrain scissors offer a range of platform heights and can be driven at full height. Innovative features like an LCD platform control box and LiftSense technology help boost productivity.


Key Features

  • Reach More with One Machine: This model is the tallest machine in its class, providing access to five-story heights.

  • Limit Trips Up and Down: Electric powered rough terrain models offer drive capability at full height.

  • Carry More to Height: The largest platform size in its class lets you bring more operators and tools to the job.

  • Use the Latest Technology: An LCD platform control box with LiftSense technology and USB charging delivers next-level, real-time productivity and service communication to the operator.

  • Reduce Maintenance Needs: Higher parts commonality and a maintenance-free 2WD AC drive system simplifies service across the rough terrain family.

  • Stay in Compliance: This ANSI A92.20 compliant lift features a load sensing system and the ability to calibrate the system without weight.

  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.


Specifications

Key Specs

  • Platform Height: 47 ft / 14.33 m

  • Platform Capacity: 800 lb / 362.87 kg

  • Machine Width: 5 ft 9 in. / 1.76 m

  • Drive Speed - Platform Lowered: 3 mph / 4.83 km/h

General
Capacity - Hydraulic Reservoir13.2 gal. / 49.97 L
Machine Weight15200 lb / 6894.60 kg
Performance
Drive Speed - Platform Elevated0.3 mph / 0.48 km/h
Drive Speed - Platform Lowered3 mph / 4.83 km/h
Gradeability - 2WD35 %
Lift Time76 sec.
Lower Time60 sec.
Platform Capacity800 lb / 362.87 kg
Platform Capacity - Extension300 lb / 136.08 kg
Turning Radius - Outside14 ft 7 in. / 4.44 m
Dimensional Data
Machine Height9 ft 1 in. / 2.77 m
Machine Length11 ft 7 in. / 3.53 m
Machine Width5 ft 9 in. / 1.76 m
Platform Dimension A10 ft 6 in. / 3.2 m
Platform Dimension B4 ft 9 in. / 1.45 m
Platform Extension Length3 ft 6 in. / 1.07 m
Platform Height - Lowered5 ft 4 in. / 1.63 m
Platform Railing Height3 ft 9 in. / 1.14 m
Tire Size26 x 12 Foam Filled
Wheelbase6 ft 9 in. / 2.07 m
Reach Specifications
Platform Height47 ft / 14.33 m
Working Height53 ft / 16.15 m
