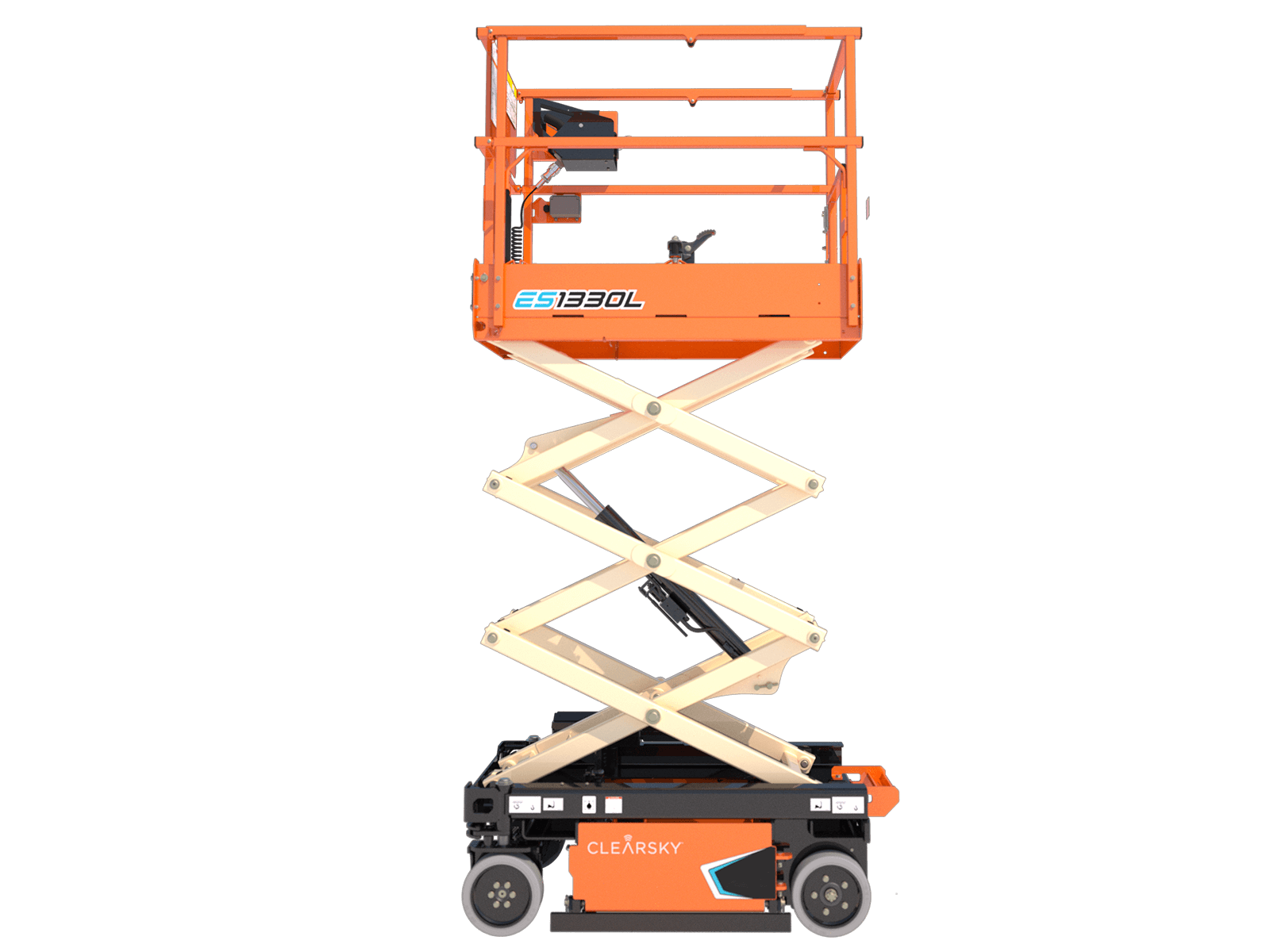

The ES Series has the industry’s best on-the-job performance with double the duty cycles of other electric scissor lifts. This gives you double the operating time on a single charge.
Work More Places: Lightweight for indoor work on sensitive flooring, such as data centers while also rated for outdoor applications
Maneuver More Efficiently: Compact footprint, with industry-exclusive zero turning radius for work in tight spaces
Reduce Operating Costs: Electric drive and integrated components with reduced hydraulic hoses and hydraulic fittings on the entire machine mean increased uptime, as well as fewer leaks and service calls
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware
Platform Height: 13 ft / 3.96 m
Platform Capacity: 500 lb / 226.80 kg
Machine Width: 2 ft 6 in. / 0.76 m
Drive Speed - Platform Lowered: 2.4 mph / 3.86 km/h
| General | |
| Brakes | Electric / Friction |
| Capacity - Hydraulic Reservoir | 1.3 gal. / 5 L |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight (ANSI Export and CSA) | 1984 lb / 899.93 kg |
| Maximum Ground Bearing Pressure | 119 psi / 8.33 Kg/cm2 |
| Performance | |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 2.4 mph / 3.86 km/h |
| Drive System | 24V Electric |
| Gradeability | 25 % |
| Lift Time | 20 sec. |
| Lower Time | 16 sec. |
| Maximum Drive Height | 13 ft / 3.96 m |
| Platform Capacity | 500 lb / 226.80 kg |
| Platform Capacity - Extension | 250 lb / 113.40 kg |
| Turning Radius - Inside | 0 in. / 0 m |
| Turning Radius - Outside | 4 ft 7 in. / 1.4 m |
| Dimensional Data | |
| Ground Clearance | 2 in. / 0.06 m |
| Machine Height | 6 ft / 1.82 m |
| Machine Length | 4 ft 8 in. / 1.43 m |
| Machine Width | 2 ft 6 in. / 0.76 m |
| Platform Extension Length | 1 ft 10 in. / 0.55 m |
| Platform Height - Lowered | 2 ft 4 in. / 0.71 m |
| Platform Railing Height | 3 ft 7 in. / 1.1 m |
| Platform Size | 24.4 in. x 49.2 in. |
| Tire Size | 10 x 3 |
| Wheelbase | 3 ft 6 in. / 1.07 m |
