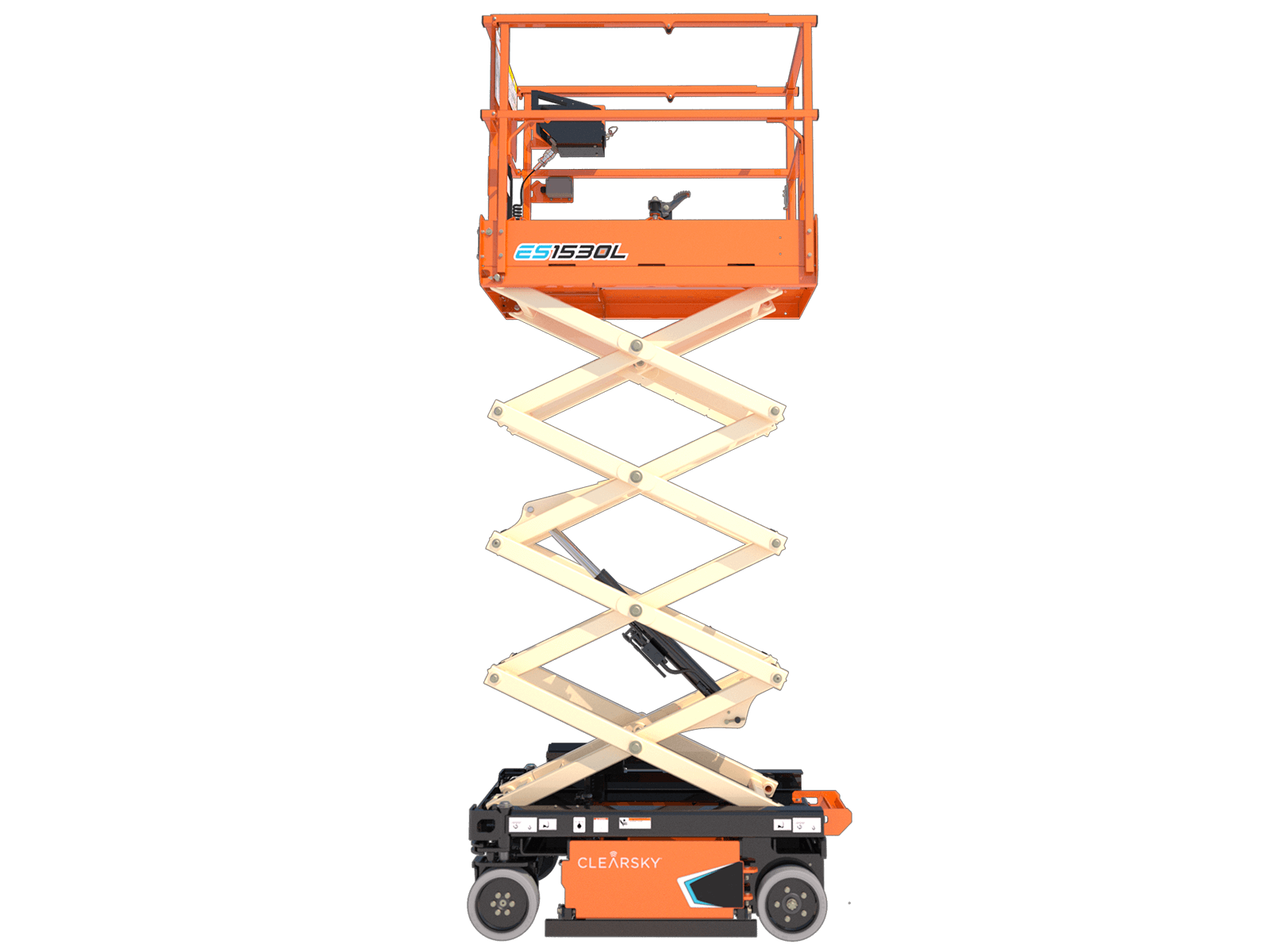

The ES Series has the industry’s best on-the-job performance with double the duty cycles of other electric scissor lifts. This gives you double the operating time on a single charge.
Work More Places: Lightweight for indoor work on sensitive flooring, such as data centers while also rated for outdoor applications
Maneuver More Efficiently: Compact footprint, with industry-exclusive zero turning radius for work in tight spaces
Reduce Operating Costs: Electric drive and integrated components with reduced hydraulic hoses and hydraulic fittings on the entire machine mean increased uptime, as well as fewer leaks and service calls
Meet the Newest Standards: Complies with new ANSI A92.20 specifications
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware
Platform Height: 15 ft / 4.57 m
Platform Capacity: 500 lb / 226.80 kg
Machine Width: 2 ft 6 in. / 0.76 m
Drive Speed - Platform Lowered: 2.4 mph / 3.86 km/h
| General | |
| Brakes | Electric / Friction |
| Capacity - Hydraulic Reservoir | 1.3 gal. / 5 L |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight (ANSI Export and CSA) | 1940 lb / 879.97 kg |
| Maximum Ground Bearing Pressure | 116 psi / 8.12 Kg/cm2 |
| Performance | |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 2.4 mph / 3.86 km/h |
| Drive System | 24V Electric |
| Gradeability | 25 % |
| Lift Time | 22 sec. |
| Lower Time | 17 sec. |
| Maximum Drive Height | 15 ft / 4.57 m |
| Platform Capacity | 500 lb / 226.80 kg |
| Platform Capacity - Extension | 250 lb / 113.40 kg |
| Turning Radius - Inside | 0 in. / 0 m |
| Turning Radius - Outside | 4 ft 7 in. / 1.4 m |
| Dimensional Data | |
| Ground Clearance | 2 in. / 0.06 m |
| Machine Height | 6 ft 3 in. / 1.9 m |
| Machine Length | 4 ft 8 in. / 1.43 m |
| Machine Width | 2 ft 6 in. / 0.76 m |
| Platform Extension Length | 1 ft 10 in. / 0.55 m |
| Platform Height - Lowered | 2 ft 7 in. / 0.79 m |
| Platform Railing Height | 3 ft 7 in. / 1.1 m |
| Platform Size | 24.4 in x 49.2 in |
| Tire Size | 10 x 3 in |
| Wheelbase | 3 ft 6 in. / 1.07 m |
