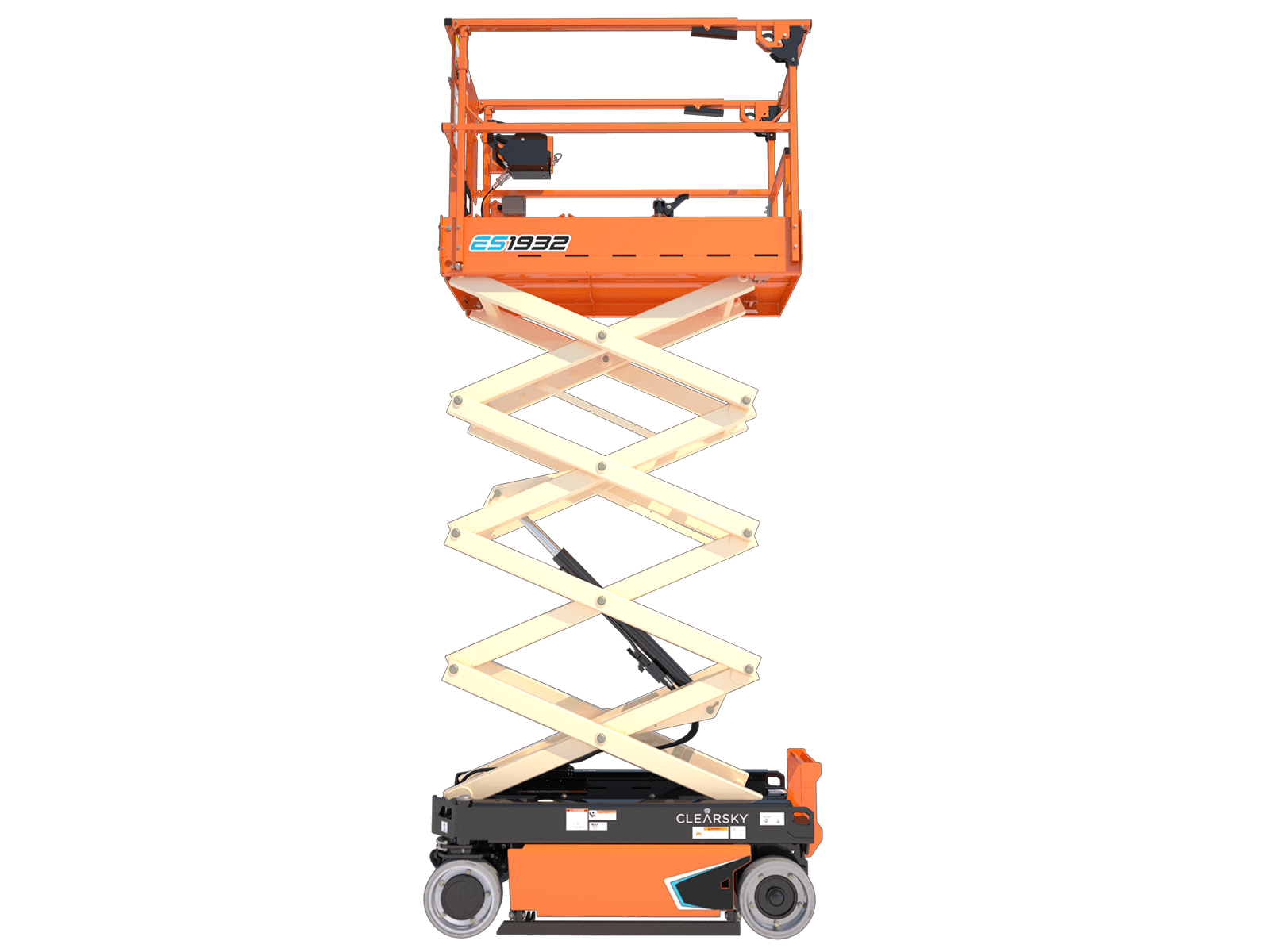

The ES Series has the industry’s best on-the-job performance with double the duty cycles of other electric scissor lifts. This gives you double the operating time on a single charge.
Increased Battery Life: Refreshed design includes electric drive, which delivers up to double the battery life of a standard scissor
Time Savings: Standard QuikFold rail system allows operators to fold the rails in a fraction of the time of a standard machine
Simplified Use & Service: Standard USB charger and phone holster improve the operator experience, while a high degree of commonality with other JLG scissors simplifies service
More Options: Available as an indoor-only option (ES1932i)
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware
Platform Height: 19 ft / 5.79 m
Platform Capacity: 507 lb / 229.97 kg
Machine Width: 2 ft 8 in. / 0.81 m
Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
| General | |
| Brakes | Multi-Disc Friction |
| Capacity - Hydraulic Reservoir | 1.9 gal. / 7 L |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight | 3450 lb / 1564.89 kg |
| Maximum Ground Bearing Pressure | 114 psi / 7.98 Kg/cm2 |
| Performance | |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 3 mph / 4.83 km/h |
| Drive System | 24V DC |
| Gradeability | 25 % |
| Lift Time | 27 sec. |
| Lower Time | 28 sec. |
| Maximum Drive Height | 19 ft / 5.79 m |
| Platform Capacity | 507 lb / 229.97 kg |
| Platform Capacity - Extension | 265 lb / 120.20 kg |
| Turning Radius - Inside | 0 in. / 0 m |
| Turning Radius - Outside | 5 ft 6 in. / 1.68 m |
| Dimensional Data | |
| Ground Clearance | 3 in. / 0.07 m |
| Machine Height | 6 ft 11 in. / 2.1 m |
| Machine Height - Rails Folded | 6 ft 6 in. / 1.99 m |
| Machine Length | 5 ft 9 in. / 1.74 m |
| Machine Width | 2 ft 8 in. / 0.81 m |
| Platform Extension Length | 3 ft / 0.91 m |
| Platform Height - Lowered | 3 ft 3 in. / 0.98 m |
| Platform Railing Height | 3 ft 8 in. / 1.11 m |
| Platform Size | 25.4in x 62.7in |
| Tire Size | 12.7 x 1.4 |
| Wheelbase | 4 ft 5 in. / 1.35 m |
