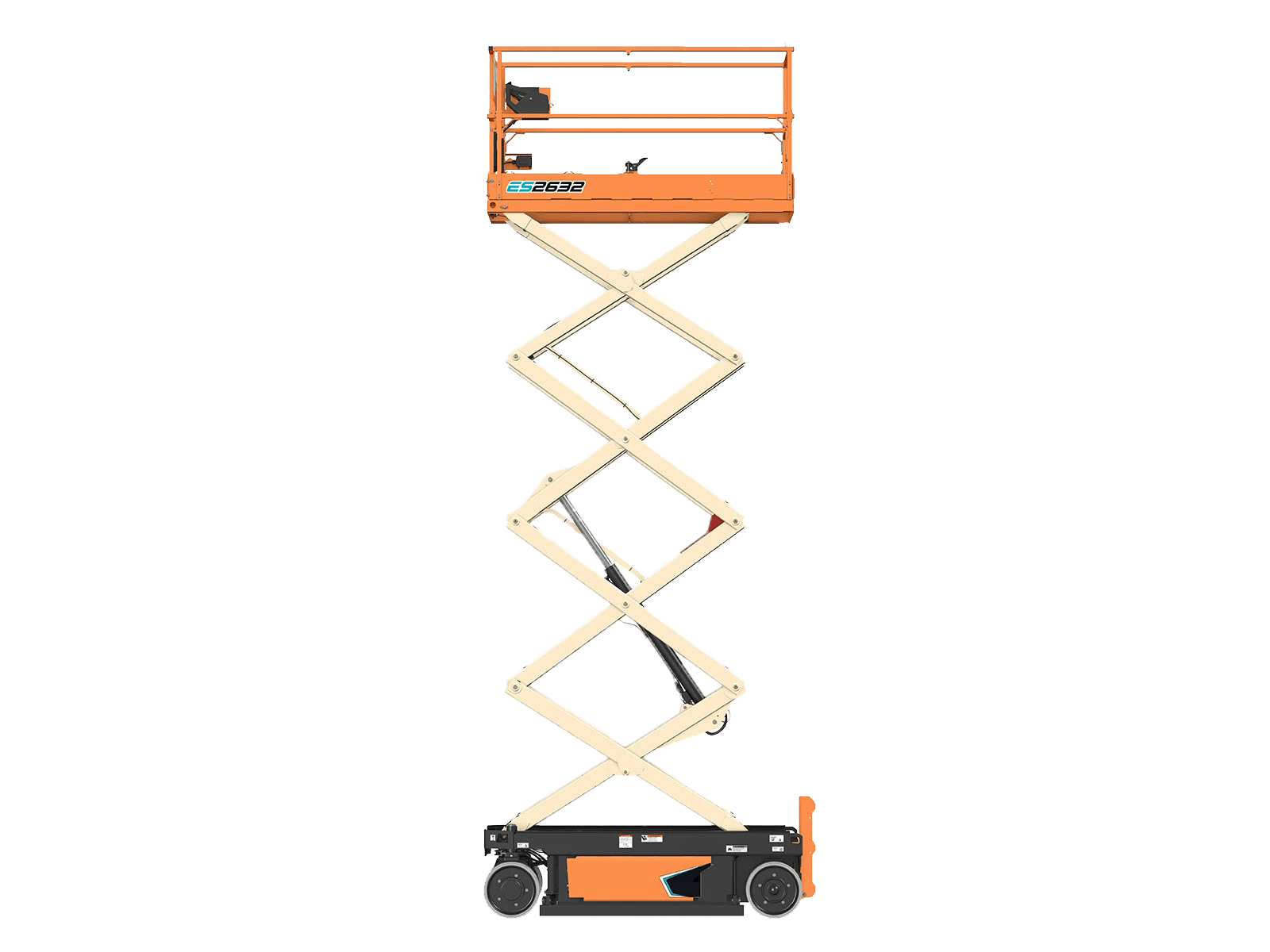

The ES Series has the industry’s best on-the-job performance with double the duty cycles of other electric scissor lifts. This gives you double the operating time on a single charge.
Run Longer on a Single Charge: Delivers double the battery life.
Work in Sensitive Areas: Available CleanGuard leak containment system allows for work on sensitive flooring.
Reduce Operating Costs: Electric drive and integrated components with reduced hydraulic components on the entire machine lower the chances for leaks and service calls to keep you on the job longer.
Increase Your Maneuverability: Narrow width fits through most standard doorways and tight aisles.
Compared to a competitive model under similar test conditions. Actual results may vary.
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Platform Height: 25 ft 6 in. / 7.77 m
Platform Capacity: 507 lb / 229.97 kg
Machine Width: 2 ft 8 in. / 0.81 m
Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
| General | |
| Brakes | Multi-disc Friction |
| Capacity - Hydraulic Reservoir | 3.2 gal. / 12.11 L |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight | 4400 lb / 1995.81 kg |
| Maximum Ground Bearing Pressure | 107 psi / 7.49 Kg/cm2 |
| Performance | |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 3 mph / 4.83 km/h |
| Drive System | 24V DC |
| Gradeability | 25 % |
| Lift Time | 46 sec. |
| Lower Time | 34 sec. |
| Maximum Drive Height | 25 ft 5 in. / 7.75 m |
| Platform Capacity | 507 lb / 229.97 kg |
| Platform Capacity - Extension | 265 lb / 120.20 kg |
| Platform Capacity - Indoor | 507 lb / 229.97 kg |
| Platform Capacity - Outdoor | 275 lb / 124.74 kg |
| Turning Radius - Inside | 0 in. / 0 m |
| Turning Radius - Outside | 7 ft 4 in. / 2.24 m |
| Dimensional Data | |
| Ground Clearance | 4 in. / 0.1 m |
| Machine Height | 7 ft 4 in. / 2.24 m |
| Machine Height - Rails Folded | 5 ft 10 in. / 1.79 m |
| Machine Length | 7 ft 10 in. / 2.4 m |
| Machine Width | 2 ft 8 in. / 0.81 m |
| Platform Extension Length | 2 ft 10 in. / 0.86 m |
| Platform Height - Lowered | 3 ft 8 in. / 1.11 m |
| Platform Railing Height | 3 ft 8 in. / 1.11 m |
| Platform Size | 25.4 x 84in |
| Tire Size | 16 x 5 in., Non-marking |
| Wheelbase | 6 ft 2 in. / 1.88 m |
