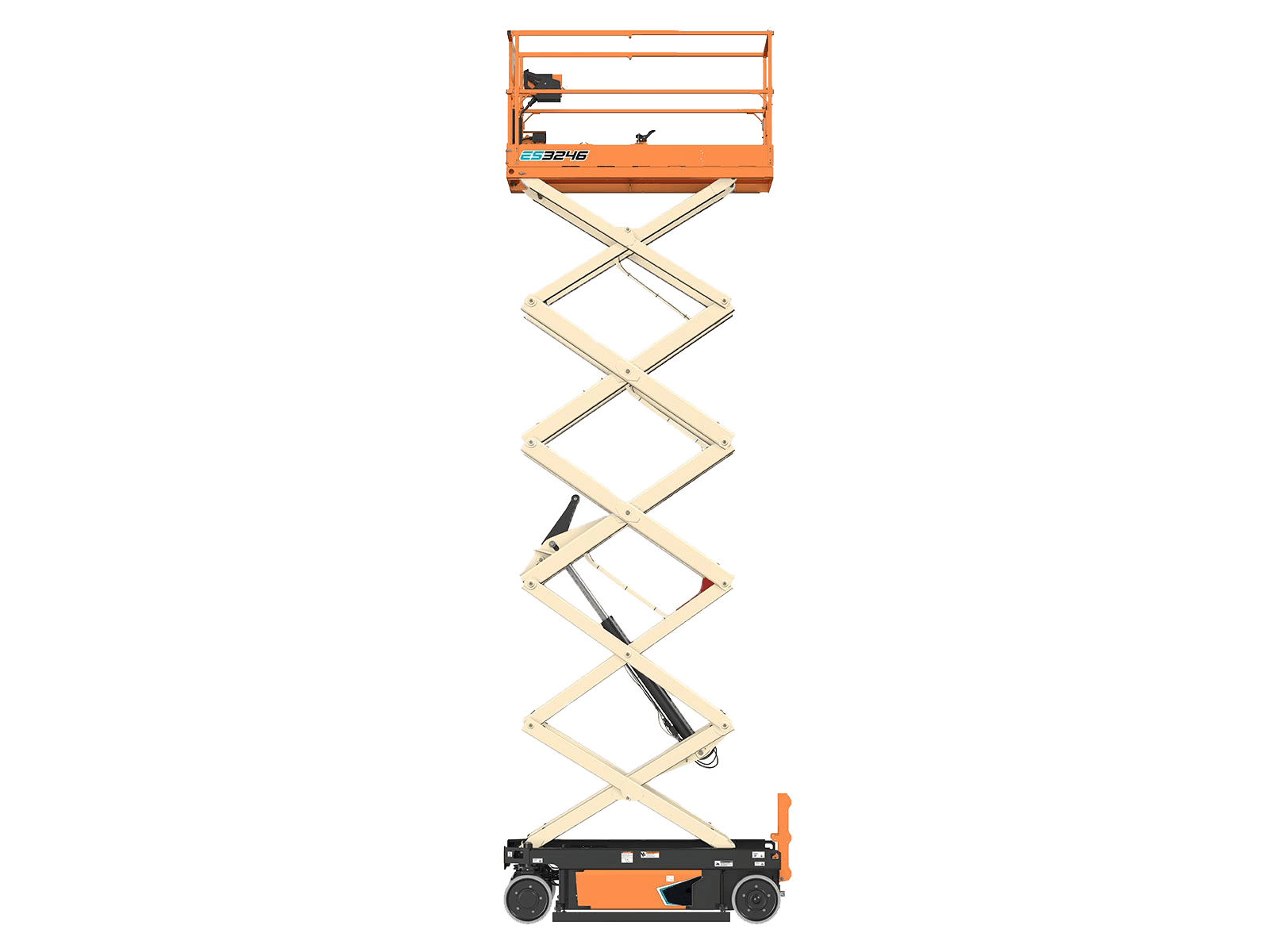

The ES Series has the industry’s best on-the-job performance with double the duty cycles of other electric scissor lifts. This gives you double the operating time on a single charge.
Run Longer on a Single Charge: Delivers double the battery life.
Work in Sensitive Areas: Available CleanGuard leak containment system allows for work on sensitive flooring.
Reduce Operating Costs: Electric drive and integrated components with reduced hydraulic components on the entire machine lower the chances for leaks and service calls to keep you on the job longer.
Compared to a competitive model under similar test conditions. Actual results may vary.
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Platform Height: 32 ft / 9.75 m
Platform Capacity: 705 lb / 319.78 kg
Machine Width: 3 ft 10 in. / 1.17 m
Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
| General | |
| Brakes | Multi-disc Friction |
| Capacity - Hydraulic Reservoir | 3.2 gal. / 12.11 L |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight | 5620 lb / 2549.19 kg |
| Maximum Ground Bearing Pressure | 140 psi / 9.80 Kg/cm2 |
| Performance | |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 3 mph / 4.83 km/h |
| Drive System | 24V DC |
| Gradeability | 25 % |
| Lift Time | 50 sec. |
| Lower Time | 33 sec. |
| Maximum Drive Height | 32 ft / 9.75 m |
| Maximum Drive Height (Indoor) | 32 ft / 9.75 m |
| Elevated Drive Height Outdoor | 32 ft / 9.75 m |
| Platform Capacity | 705 lb / 319.78 kg |
| Platform Capacity - Extension | 265 lb / 120.20 kg |
| Platform Capacity - Indoor | 705 lb / 319.78 kg |
| Platform Capacity - Outdoor | 507 lb / 229.97 kg |
| Turning Radius - Inside | 0 in. / 0 m |
| Turning Radius - Outside | 7 ft 9 in. / 2.37 m |
| Dimensional Data | |
| Ground Clearance | 4 in. / 0.1 m |
| Machine Height | 8 ft / 2.45 m |
| Machine Height - Rails Folded | 6 ft 6 in. / 1.97 m |
| Machine Length | 7 ft 10 in. / 2.4 m |
| Machine Width | 3 ft 10 in. / 1.17 m |
| Platform Extension Length | 3 ft / 0.91 m |
| Platform Height - Lowered | 4 ft 3 in. / 1.29 m |
| Platform Railing Height | 3 ft 8 in. / 1.11 m |
| Platform Size | 41.6 x 84in |
| Tire Size | 16 x 5 in., Non-marking |
| Wheelbase | 6 ft 2 in. / 1.88 m |
