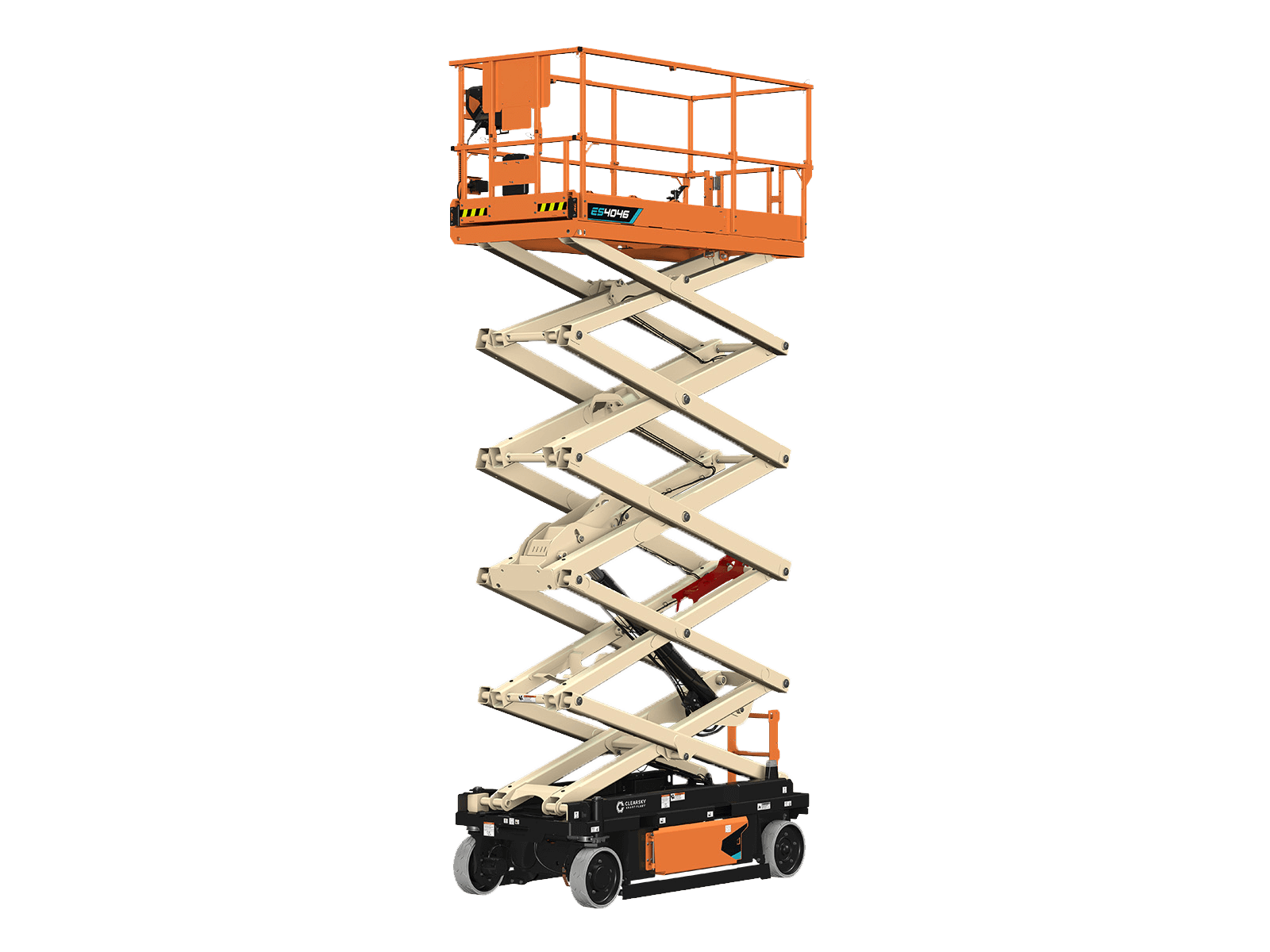

ES4046

ES4046

Maximum work height13.75 m

Safety working load349.27 kg

Overview

Specifications

Related Products

Leave Message

The ES Series has the industry’s best on-the-job performance with double the duty cycles of other electric scissor lifts. This gives you double the operating time on a single charge.


Key Features

  • Enhance productivity with more than a 40% increase in duty cycles over its hydraulic drive predecessor and an indoor capacity of three occupants.

  • Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine. Meaning, increased uptime as well as fewer leaks and service calls.

  • Work in sensitive areas with optional CleanGuard Leak Containment System.

  • Features a standard USB charger and phone holster, improving the operator experience while delivering a high degree of commonality with other JLG scissors to simplify service.


Specifications

Key Specs

  • Machine Width: 3 ft 10 in. / 1.17 m

  • Drive Speed - Platform Lowered: 3 mph / 4.83 km/h

General
BrakesElectric, Friction
Capacity - Hydraulic Reservoir3.2 gal. / 12.11 L
Hydraulic PumpFixed Displacement Gear
Machine Weight6230 lb / 2825.88 kg
Maximum Ground Bearing Pressure152 psi / 10.64 Kg/cm2
Performance
Drive Speed - Platform Elevated0.5 mph / 0.80 km/h
Drive Speed - Platform Lowered3 mph / 4.83 km/h
Drive System24V AC
Gradeability25 %
Lift Time62 sec.
Lower Time70 sec.
Maximum Drive Height (Indoor)39.1 ft / 11.92 m
Elevated Drive Height Outdoor28.7 ft / 8.75 m
Platform Capacity - Extension250 lb / 113.40 kg
Platform Capacity - Indoor770 lb / 349.27 kg
Platform Capacity - Outdoor550 lb / 249.48 kg
Turning Radius - Inside0 in. / 0 m
Turning Radius - Outside7 ft 10 in. / 2.4 m
Dimensional Data
Ground Clearance5 in. / 0.12 m
Machine Height8 ft 4 in. / 2.53 m
Machine Length8 ft 11 in. / 2.71 m
Machine Width3 ft 10 in. / 1.17 m
Platform Extension Length3 ft / 0.91 m
Platform Railing Height3 ft 9 in. / 1.13 m
Platform Size97.1 x 37.4 - in
Tire Size16 x 5 - in
Wheelbase6 ft 8 in. / 2.04 m
Reach Specifications
Platform Height (Indoor)39.1 ft / 11.92 m
Platform Height (Outdoor)28.7 ft / 8.75 m
Working Height45.1 ft / 13.75 m
