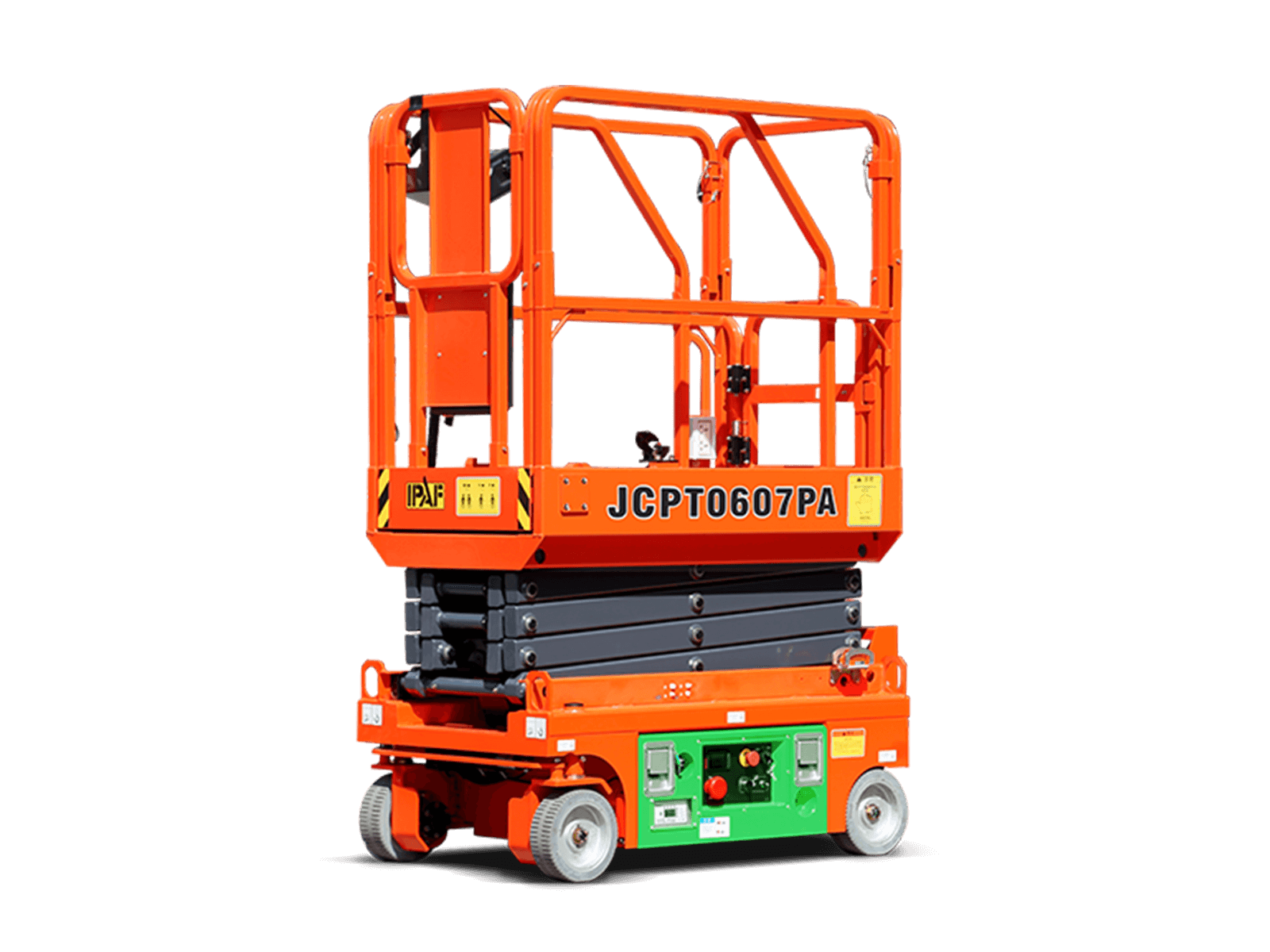

JCPT0607PA

JCPT0607PA

Maximum work height5.6m

Safety working load240kg

Overview

Specifications

Related Products

Leave Message

Key Features

  • Low energy consumption, the total transmission efficiency of the direct motor drive systems reaches 95%, more than 30% energy saving compared with the traditional hydraulic system.

  • Safer, higher levels of water and dust resistance, with built-in position sensors, real-time data monitoring of the full stroke. Synergistic drives enable temperature, load, and variable torque control, offering high active safety.

  • Easy maintenance, no hydraulic system, avoid system problems such as valve core stuck, oil leakage, oil change, high and low temperature efficiency reduction, equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.

  • More comfortable, full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of the hydraulic system, providing a better experience.

  • More environmentally friendly, the noise of the machine is lower than that with the hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.


Specifications

  • Max. Working Height: 5.60m

  • S.W.L: 240kg

  • Max. Occupants: 2

  • Overall Length: 1.46m

  • Overall Width: 0.76m

  • Overall Height(Rails Up): 2.06m

  • Overall Height(Rails Down): 1.69m

  • Platform Size(Length×Width): 1.29m×0.70m

  • Overall Weight: 950kg

  • Battery: 24V/85Ah

  • Charger: 24V/15A
