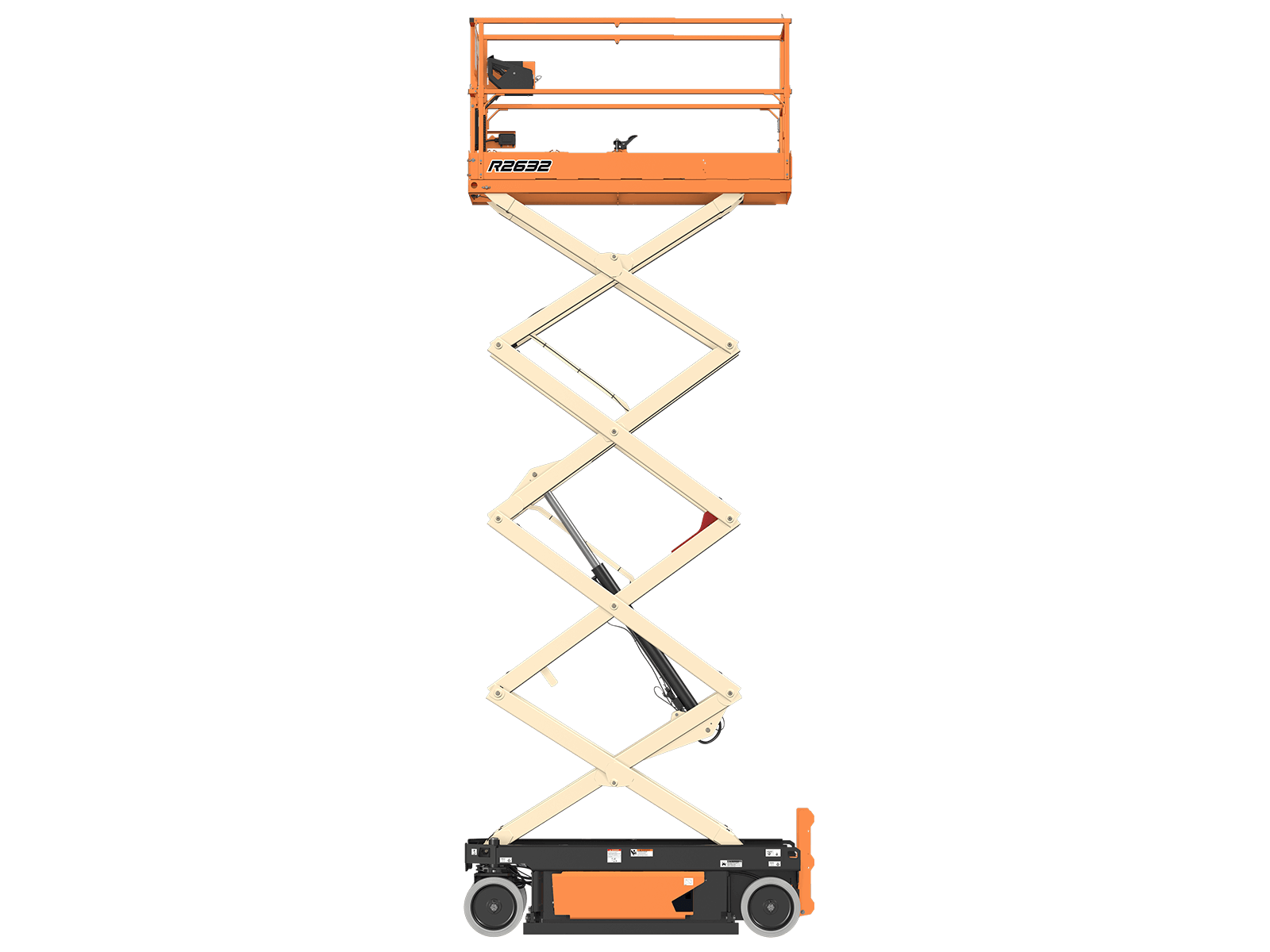

The R series from JLG is designed to be more reliable and easier to service.
Reach More in Difficult Conditions: Industry-exclusive outdoor rating for use up to 21 ft.
Tackle Demanding Terrain: Active pothole protection provides increased ground clearance.
Meet the Highest Standards: Complies with A92.20 ANSI regulations.
Fit Through Standard Doorways: Ability to pass through single doorways gives you more access site-wide.
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Platform Height: 25 ft 6 in. / 7.77 m
Machine Width: 2 ft 8 in. / 0.81 m
Working Height: 31 ft 6 in. / 9.6 m
| General | |
| Brakes | Multi-disc Friction |
| Capacity - Hydraulic Reservoir | 4 gal. / 15.14 L |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight | 4280 lb / 1941.38 kg |
| Maximum Ground Bearing Pressure | 92 psi / 6.44 Kg/cm2 |
| Performance | |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 2.2 mph / 3.54 km/h |
| Drive System | Hydraulic Front-Wheel |
| Gradeability | 25 % |
| Lift Time | 46 sec. |
| Lower Time | 34 sec. |
| Maximum Drive Height | 21 ft / 6.4 m |
| Platform Capacity | 507 lb / 229.97 kg |
| Platform Capacity - Extension | 265 lb / 120.20 kg |
| Platform Capacity - Indoor | 507 lb / 229.97 kg |
| Platform Capacity - Outdoor | 275 lb / 124.74 kg |
| Turning Radius - Inside | 0 in. / 0 m |
| Turning Radius - Outside | 7 ft 4 in. / 2.24 m |
| Dimensional Data | |
| Ground Clearance | 4 in. / 0.1 m |
| Machine Height | 7 ft 4 in. / 2.24 m |
| Machine Height - Rails Folded | 5 ft 10 in. / 1.79 m |
| Machine Length | 7 ft 10 in. / 2.4 m |
| Machine Width | 2 ft 8 in. / 0.81 m |
| Platform Extension Length | 2 ft 10 in. / 0.86 m |
| Platform Height - Lowered | 3 ft 8 in. / 1.11 m |
| Platform Railing Height | 3 ft 8 in. / 1.11 m |
| Platform Size | 25.4 x 84in |
| Tire Size | 16 x 5in Non-Marking |
| Wheelbase | 6 ft 2 in. / 1.88 m |
| Reach Specifications | |
| Platform Height | 25 ft 6 in. / 7.77 m |
| Platform Height (Indoor) | 25.6 ft / 7.80 m |
| Platform Height (Outdoor) | 21 ft / 6.40 m |
| Working Height | 31 ft 6 in. / 9.6 m |
