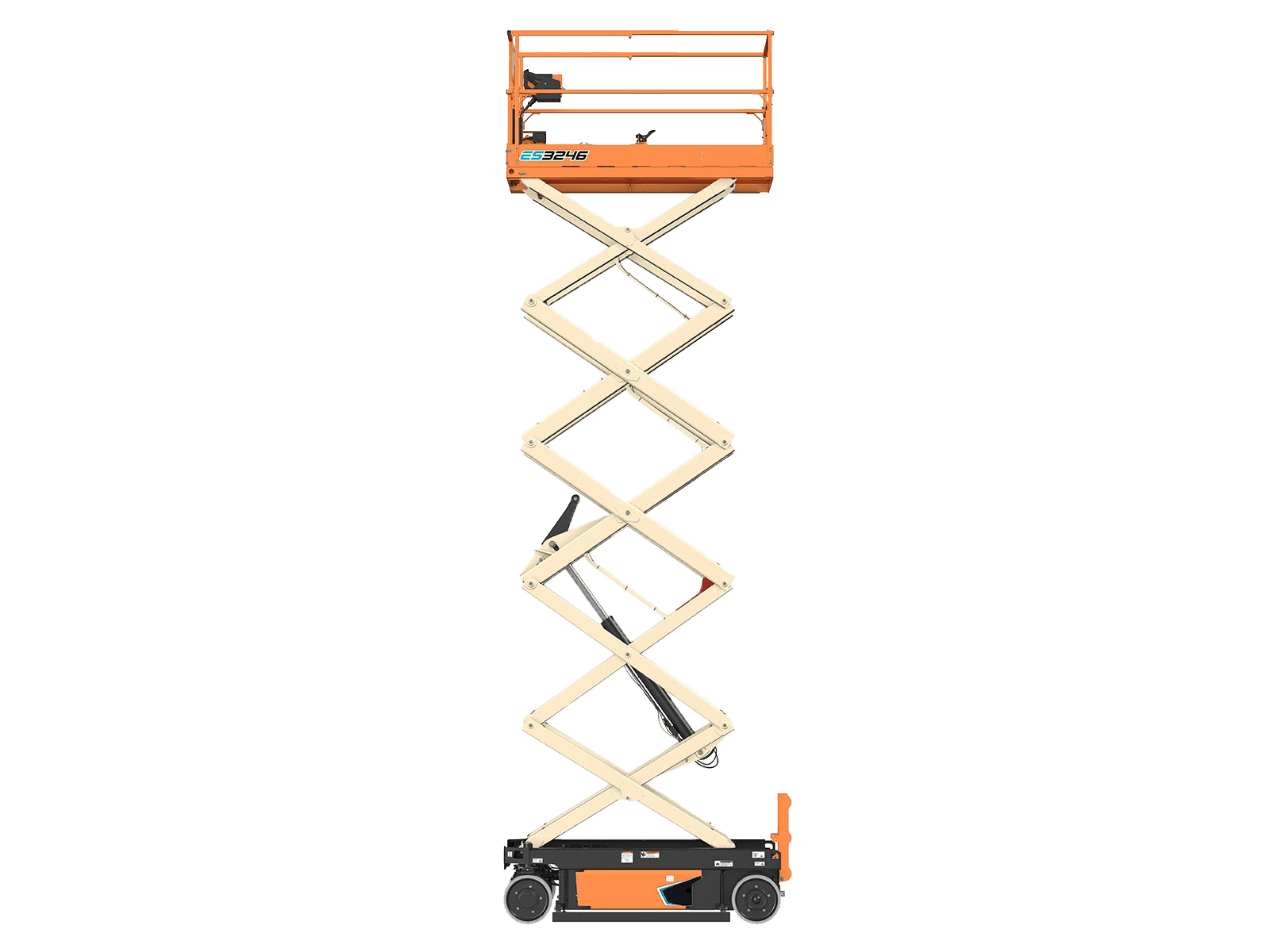

The R series from JLG is designed to be more reliable and easier to service.
Experience the Lightest Scissor in Its Class: Lightweight with simplified lift system.
Tackle Demanding Terrain: Active pothole protection provides increased ground clearance.
Meet the Highest Standards: Complies with A92.20 ANSI regulations.
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Platform Height: 32 ft / 9.75 m
Machine Width: 3 ft 10 in. / 1.17 m
Working Height: 38 ft / 11.58 m
| General | |
| Brakes | Multi-disc Friction |
| Capacity - Hydraulic Reservoir | 4 gal. / 15.14 L |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight | 5410 lb / 2453.93 kg |
| Maximum Ground Bearing Pressure | 131 psi / 9.17 Kg/cm2 |
| Performance | |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 2.5 mph / 4.02 km/h |
| Drive System | Hydraulic Front-Wheel |
| Gradeability | 25 % |
| Lift Time | 54 sec. |
| Lower Time | 41 sec. |
| Maximum Drive Height | 32 ft / 9.75 m |
| Maximum Drive Height (Indoor) | 32 ft / 9.75 m |
| Elevated Drive Height Outdoor | 32 ft / 9.75 m |
| Platform Capacity | 705 lb / 319.78 kg |
| Platform Capacity - Extension | 265 lb / 120.20 kg |
| Platform Capacity - Indoor | 705 lb / 319.78 kg |
| Platform Capacity - Outdoor | 507 lb / 229.97 kg |
| Turning Radius - Inside | 0 in. / 0 m |
| Turning Radius - Outside | 7 ft 9 in. / 2.37 m |
| Dimensional Data | |
| Ground Clearance | 4 in. / 0.1 m |
| Machine Height | 8 ft / 2.45 m |
| Machine Height - Rails Folded | 6 ft 6 in. / 1.97 m |
| Machine Length | 7 ft 10 in. / 2.4 m |
| Machine Width | 3 ft 10 in. / 1.17 m |
| Platform Extension Length | 3 ft / 0.91 m |
| Platform Height - Lowered | 4 ft 3 in. / 1.29 m |
| Platform Railing Height | 3 ft 8 in. / 1.11 m |
| Platform Size | 41.6 x 84in |
| Tire Size | 16 x 5in Non-Marking |
| Wheelbase | 6 ft 2 in. / 1.88 m |
| Reach Specifications | |
| Platform Height | 32 ft / 9.75 m |
| Platform Height (Indoor) | 32 ft / 9.75 m |
| Platform Height (Outdoor) | 32 ft / 9.75 m |
| Working Height | 38 ft / 11.58 m |
