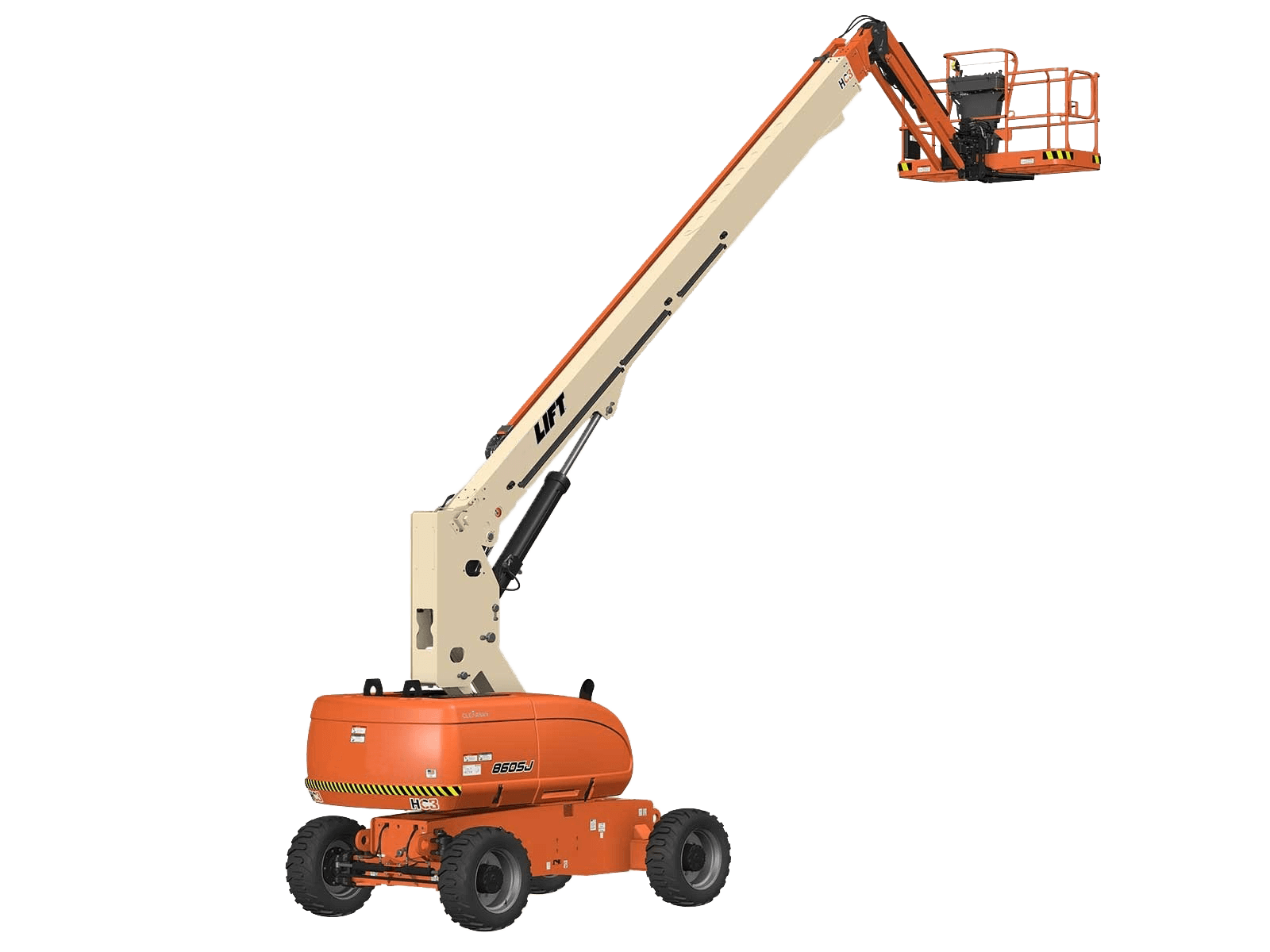

860SJ HC3

860SJ HC3

Maximum work height26.21 m

Safety working load226.80 kg

Overview

Specifications

Related Products

Leave Message

Go from the ground to 80 ft in less than 67 seconds—that’s 40% faster than the competition. 800 Series telescopic boom lifts deliver increased horizontal outreach, more platform capacity and job-proven performance. The narrow, fixed-width chassis on an 800 Series telescopic boom lift gets you in and out of confined spaces, while the available articulating jib gives you the additional access you need. Plus, our Hi-Capacity telescoping lifts allow you to push the envelope without compromise, offering three capacity zones, each rated for up to three occupants and tools.


Key Features

  • More Flexibility at Height: With three working zones and enhanced capacity, up to three workers and tools can fit into the platform

  • Increased Efficiency: A zero calibration automatic load sensing system eliminates the need to use external weights to calibrate the machine

  • Enhanced Operator Experience: An upgraded light panel is more visible in the sun, while a chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 4 degrees

  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware


Specifications

  • Platform Height: 86 ft / 26.21 m

  • Platform Capacity - Restricted: 1000 lb / 453.59 kg

  • Platform Capacity - Restricted 2: 750 lb / 340.19 kg

  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg

  • Horizontal Outreach: 75 ft / 22.86 m

  • Machine Weight: 38040 lb / 17254.65 kg

  • Machine Height: 10 ft / 3.05 m

  • Machine Length: 40 ft / 12.19 m

  • Machine Width: 8 ft 2 in. / 2.49 m
