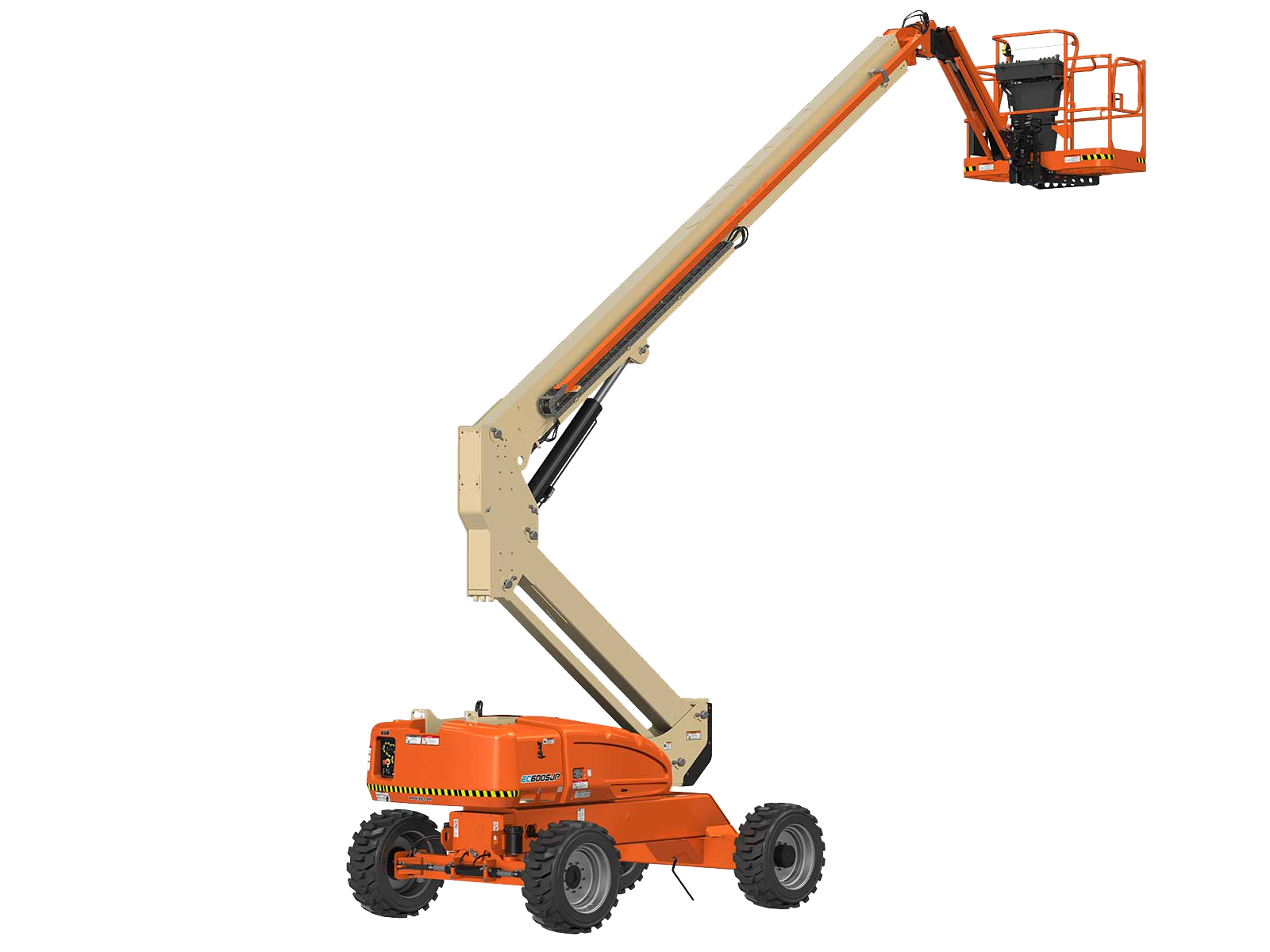

EC600SJP

EC600SJP

Maximum work height18.39 m

Safety working load226.80 kg

Overview

Specifications

Related Products

Leave Message

Key Features

  • Environmentally friendly – zero emissions, reduced noise and standard non-marking tires

  • Maneuverability – move over uneven surfaces with Automatic Traction Control

  • Productivity – work longer with longer duty cycles

  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware


Specifications

Power Source
Batteries8 x 6V, 415 A-h
Electrical System48 Volts DC
Performance
Drive Speed - Platform Lowered3 mph / 4.83 km/h
Gradeability - 2WD30 %
Gradeability - 4WD45 %
Jib - Range of Articulation145 Degrees
Platform Capacity500 lb / 226.80 kg
Swing400 Degrees
Swing TypeNon-Continuous
Turning Radius - Outside15 ft 4 in. / 4.67 m
Dimensional Data
Ground Clearance1 ft / 0.3 m
Machine Height8 ft 4 in. / 2.54 m
Machine Length33 ft 4 in. / 10.16 m
Machine Width7 ft 11 in. / 2.41 m
Platform Dimension A2 ft 6 in. / 0.76 m
Platform Dimension B6 ft / 1.83 m
Tailswing4 ft / 1.22 m
Tire Size36 x 14-22.5 Non-marking Foam Filled
Wheelbase9 ft / 2.74 m
Reach Specifications
Horizontal Jib Rotation180 Degrees
Horizontal Outreach44 ft 5 in. / 13.54 m
Platform Height60 ft 4 in. / 18.39 m
General
Capacity - Hydraulic Reservoir15 gal. / 56.78 L
Machine Weight17210 lb / 7806.32 kg
