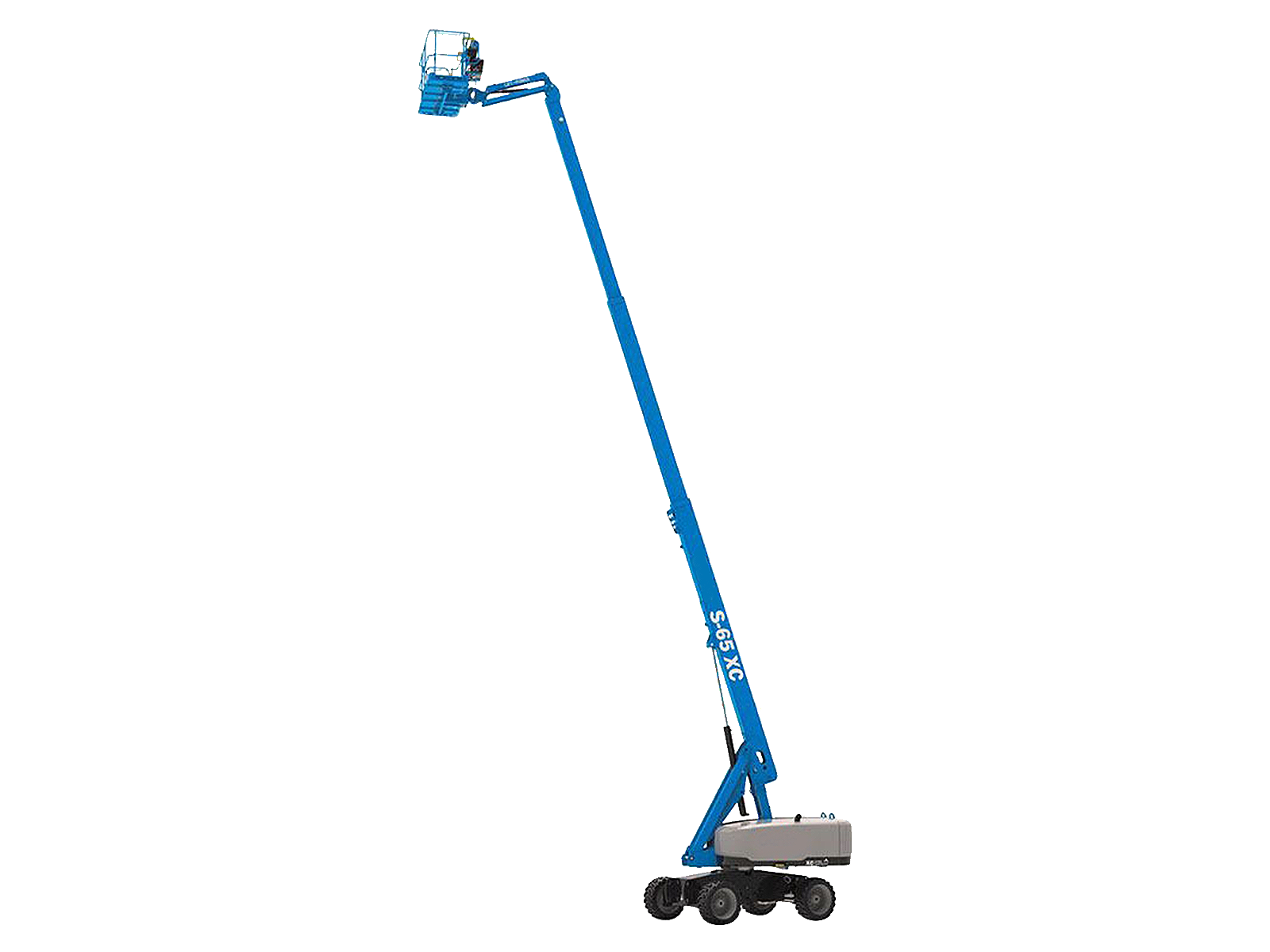

Genie S-65 XC and S-65 TraX telescopic boom lifts are the redesigned Xtra Capacity version of the popular Genie S-65 XC and S-65 TraX. They can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to their dual lift capacity and offer innovative features to help increase jobsite efficiency.
Full-time active oscillating axle and full-time positive traction for superior terrainability
Chassis tilt sensor technology maximizes access to hard-to-reach work areas
5 ft/1.52 m robust articulating jib
Dual lifting capacity of 660 lb/300 kg and 1,000 lb/454 kg to lift increased loads and up to 3 operators
Automatic envelope control technology for a smooth operating envelope
Zero-load field calibration and onboard diagnostics maximize serviceability
S-65 TraX Overview
Same Features as Above
The patented track design features 4 independent tracks, swiveling vertically up to 20° for a smooth drive on rough ground conditions 30° steer angle for easy maneuvering.

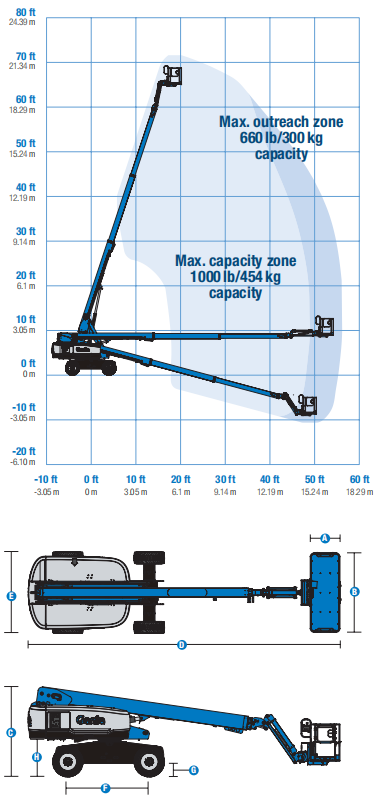

Measurements | US | Metric |
Working height max.(1) | 71 ft | 21.81 m |
Working height max.(TraX)(1) | 71 ft 2 in | 21.86 m |
Platform height max. | 65 ft | 19.81 m |
Platform height max.(TraX) | 65 ft 2 in | 19.86 m |
Horizontal reach max. | 54 ft 2 in | 16.51 m |
Below ground reach | 8 ft 8 in | 2.65 m |
A Platform length (8 ft/6 ft) | 3 ft/2 ft 6 in | 0.91 m/0.76 m |
B Platform width (8 ft/6 ft) | 8 ft/6 ft | 2.44 m/1.83 m |
C Height - stowed (tires) | 9 ft 3 in | 2.81 m |
C Height - stowed (TraX) | 9 ft 5 in | 2.87 m |
D Length - stowed (tires) D Length - stowed (TraX) D Length - storage/transport (jib tucked under) | 32 ft 32 ft 25 ft 7 in | 9.76 m 9.76 m 7.80 m |
E Width (tires) | 8 ft 2 in | 2.49 m |
8 ft 1.6 in | 2.48 m | |
8 ft 2 in | 2.49 m | |
G Ground clearance - center (tires) | 16.3 in | 0.41 m |
G Ground clearance - center (TraX) | 18.6 in | 0.47 m |
H Height under counterweight | 3 ft 10 in | 1.17 m |
Productivity | ||
Lift capacity max. - unrestricted | 660 lb | 300 kg |
Lift capacity max. - restricted | 1,000 lb | 454 kg |
Number of Platform Occupants (restricted/unrestricted) | 3/2 | |
Platform rotation | 160° | |
Jib length | 5 ft | 1.52 m |
Vertical jib rotation (up/down) | 133° | |
Turntable rotation | 360° | |
Turntable tailswing | 4 ft 7.5 in | 1.41 m |
Drive speed - stowed (tires) | 3.0 mph | 4.8 km/h |
Drive speed - stowed (TraX) | 2.3 mph | 3.7 km/h |
Drive speed - raised (tires) | 1 ft/s | 0.3 m/s |
Drive speed - raised (TraX) | 0.7 ft/s | 0.2 m/s |
Gradeability - stowed(2) | 45 % | |
Tilt sensor activation (front to back/side to side) | 7° / 5° | |
Turning radius - inside/outside (tires) | 10 ft 6 in/17 ft 10 in | 3.20 m/5.40 m |
Turning radius - inside/outside (TraX) | 8 ft .5 in/18 ft 5 in | 2.45 m/5.60 m |
Tires | 355/55D625 | |
Track system - 4 points | TraX | |
| Power | ||
Power | Diesel | |
Hydraulic tank capacity | 40 gal | 151 L |
Fuel tank capacity | 35 gal | 132 L |
Weight(3) and Floor Loading(4) | ||
Weight (tires) | 25,160 lb | 11,412 kg |
Weight (TraX) | 28,877 lb | 13,098 kg |
Tire contact pressure | 90 psi | 620 kPa |
Track contact pressure | 28 psi | 193 kPa |
Occupied floor pressure (tires) | 304 psf | 14.55 kPa |
Occupied floor pressure (TraX) | 100.64 psf | 4.82 kPa |
Sound and Vibration Levels | ||
Sound Pressure level (ground workstation) | 85 dBA | |
Sound Pressure level (platform workstation) | 75 dBA | |
Vibrations | < 2.5 m/s² |
