S-80 HF and S-85 HF
Maximum work height26.38-27.91m
Safety working load454kg
Maximum work height26.38-27.91m
Safety working load454kg

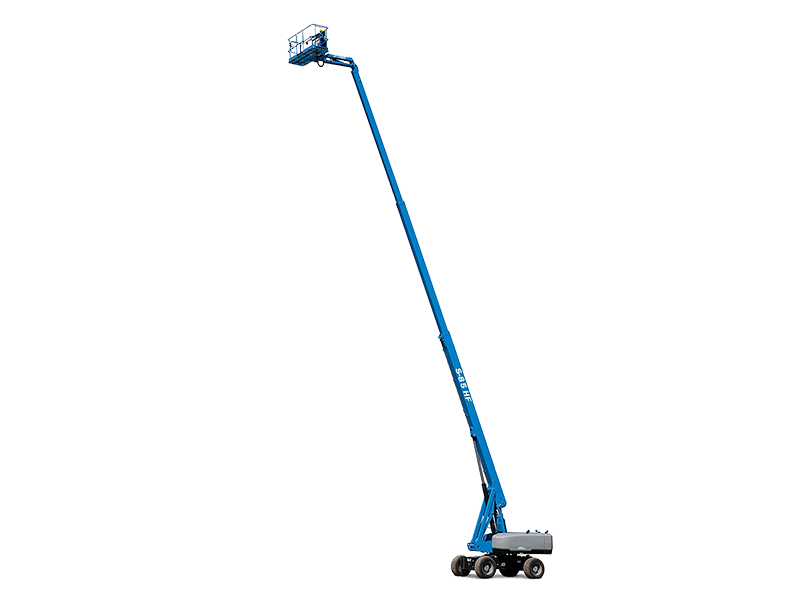

The Genie S-80 HF and S-85 HF high float telescopic booms are designed to perform heavy-lifting tasks in sensitive turf conditions, such as sand and turf ground conditions. Engineered to “float” on soft or delicate surfaces, the Genie S-80 and S-85 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires.
This new generation of Genie HF booms retain the productivity features that enhance customers’ ability to get work done quickly, including:
A virtual pivot primary boom that aligns the machine’s center of gravity for lower machine weight
35,500 lb (16,103 kg) on the Genie S-80 HF model
38,000 lb (17,237 kg) on the Genie S-85 HF model
4WD and positive traction drive maintains equal power to all drive wheels
45% gradeability (stowed) for driving on slopes
160˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning
| Max Working Height | S-80 HF: 86 ft / S-85 HF: 91 ft | S-80 HF: 26.38 m / S-85 HF: 27.91 m |
| Max Horizontal Reach | S-80 HF: 68 ft 6 in / S-85 HF: 72 ft 6 in | S-80 HF: 20.88 m / S-85 HF: 22.10 m |
| Below Ground Reach | S-80 HF: 5 ft 6 in / S-85 HF: 8 ft 8 in | S-80 HF: 1.68m / S-85 HF: 2.64 m |
| Platform Capacity | 600 lb Unrestricted, 1,000 lb Restricted | 272 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | S-80 HF: 8 ft 6 in, 37 ft 7 in / S-85 HF: 8 ft 6 in, 40 ft 7 in | S-80 HF: 2.59 m, 11.49 m / S-85 HF: 2.59 m, 12.37 m |
