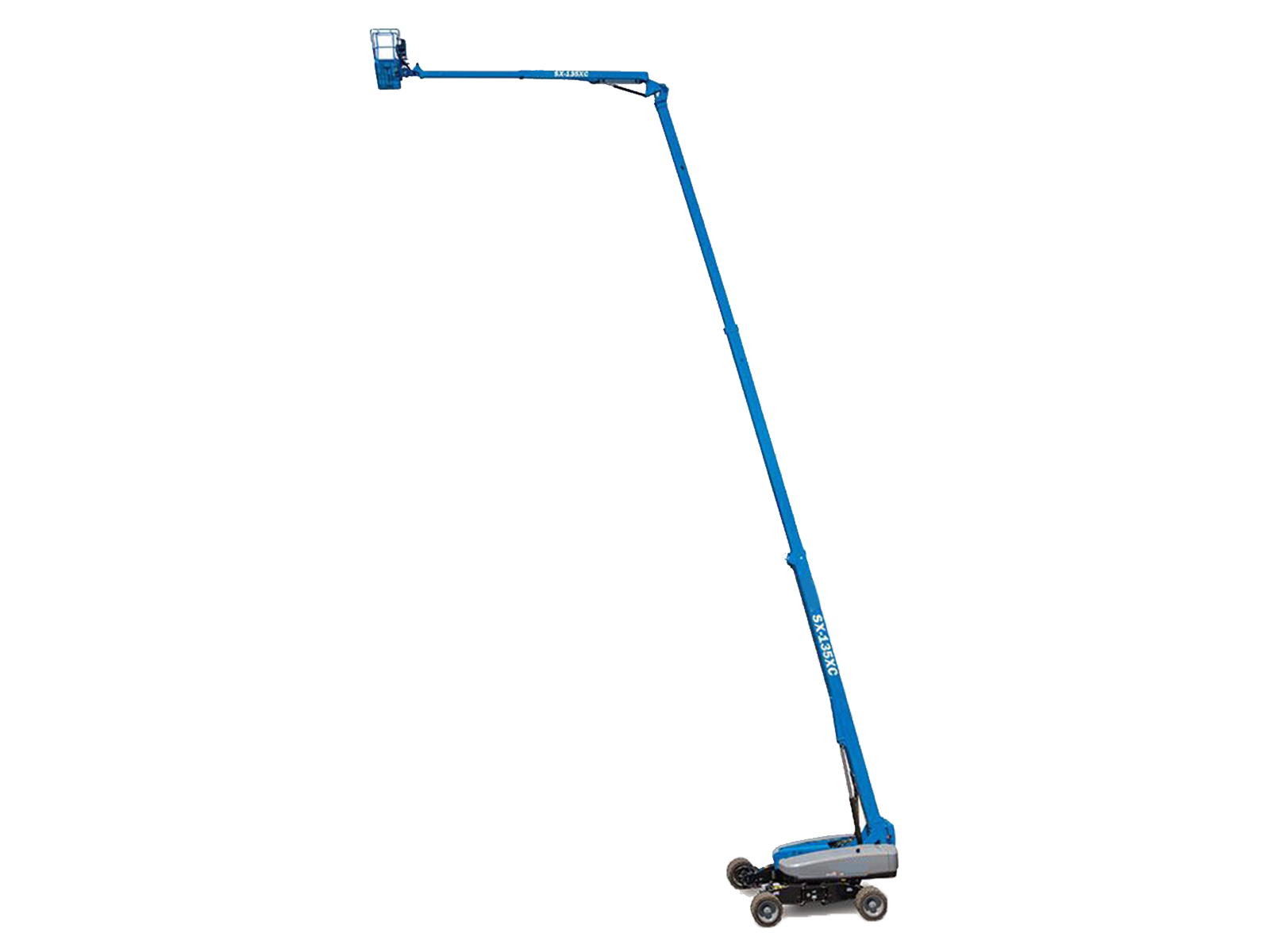

SX-135 XC

SX-135 XC

Maximum work height43.15m

Safety working load454kg

Overview

Specifications

Related Products

Leave Message

The Genie SX-135 XC telescopic boom delivers industry-leading outreach and capacity through the full working envelope for incredible operational versatility and accessibility. It boasts 660 lb/1,000 lb (300/454 kg) dual platform capacity with a smooth range of motion envelope to lift heavy loads in the most challenging jobsite applications.

Feature

  • Industry-leading 90 ft (27.43 m) of maximum outreach.

  • Increased range of motion with 18 - 30 ft (5.48 – 9.14 m) Telescoping Jib-Extend and 130° of jib articulation.

  • Load sense technology for accurate load weighing and zero-load field calibration.

  • Extended reach out and down capability with 19 ft 8 in (6.00 m) of reach below grade.


Specifications

SpecificationValue
Max Working Height141 ft | 43.15 m
Max Horizontal Reach90 ft | 27.43 m
Below Ground Reach19 ft 8 in | 6.00 m
Platform Capacity660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
Machine Width and LengthWidth: 8 ft 2 in - 12 ft 11 in | Length: 64 ft 10 in | Width: 2.49 m - 3.94 m | Length: 19.76 m
