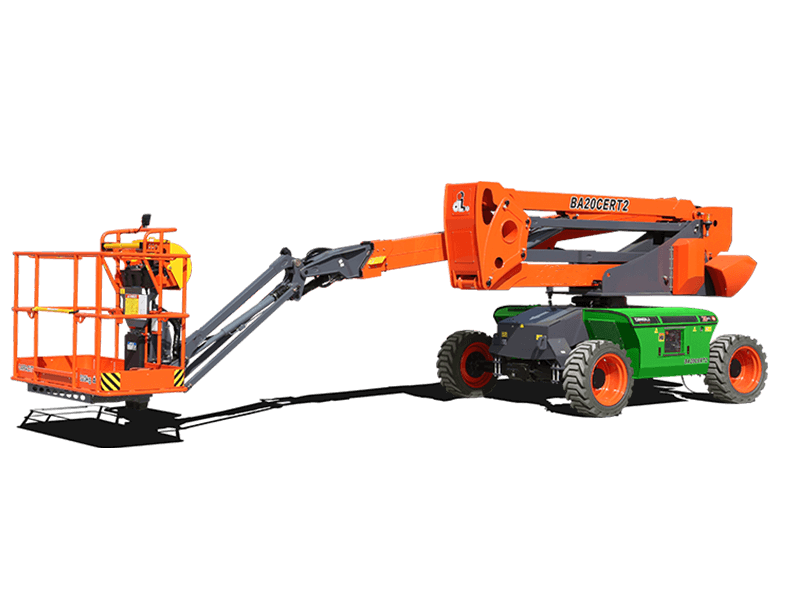

Below ground reachable, large range of horizontal outreach;
Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;
Equipped with integrated axle, four-wheel drive & two-wheel steering;
Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;
Driveable at full height with large load of 320kg;
Suitable for standard container transport;
Optionally equipped with 48V350Ah high-capacity lithium battery packs, 1.5-hour fast charging.
Max. Working Height: 20.15m/66ft 11in
Max. Platform Height: 18.15m/59ft 6in
Max. Operating Range(+0.6m): 11.13m/36ft 6in
Max. Platform Range: 10.53m/34ft 6in
Max. Up And Over Clearance: 8.18m/26ft 10in
Max. Down Probing Depth: 1.25m/4ft 1in
Flatbed Transport Dimensions (L×W×H): 6.41m×2.44mx2.59m/21ft×8ft×8ft 6in
Standard Container Transport: All Applicable
Platform Size(Length×Width): 1.83m×0.79m/6ft×2ft 7in
S.W.L(Unrestricted/Restricted): 320kg/705lb
Max. Occupants: 2
Overall Weight: 8900kg/19621lb
