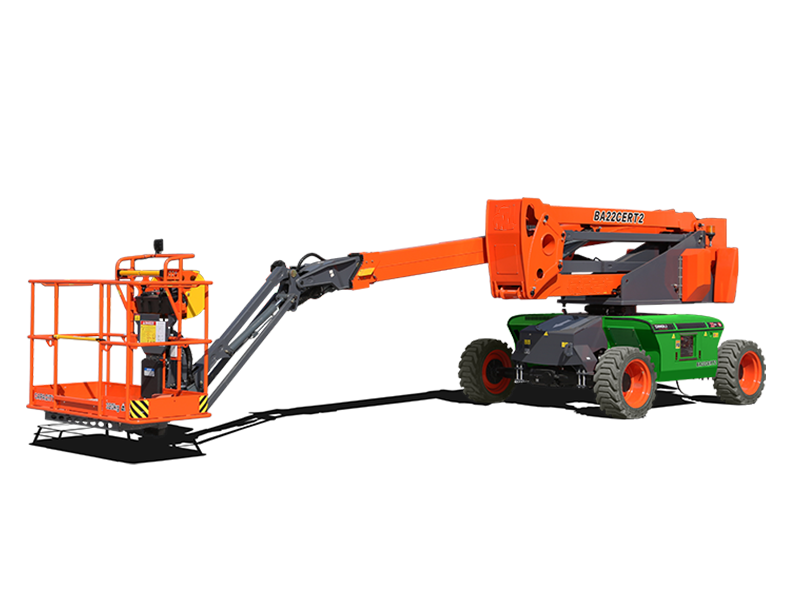

Below ground reachable, large range of horizontal outreach;
Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;
Equipped with integrated axle, four-wheel drive & two-wheel steering;
Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;
Driveable at full height with large load of 320kg;
Suitable for standard container transport;
Equipped with 18.2kw low-power engine.
Max. Working Height: 22.04m/72ft 4in
Max. Platform Height: 20.04m/65ft 9in
Max. Operating Range(+0.6m): 13.17m/43ft 2in
Max. Platform Range: 12.57m/41ft 3in
Max. Up And Over Clearance: 8.18m/26ft 10in
Max. Down Probing Depth: 1.74m/5ft 8in
Flatbed Transport Dimensions (L×W×H): 7.36m×2.44m×2.59m/24ft 2in×8ft×8ft 6in
Standard Container Transport: All Applicable
Platform Size(Length×Width): 1.83m×0.79m/6ft×2ft 7in
S.W.L(Unrestricted/Restricted): 320kg/705lb
Max. Occupants: 2
Overall Weight: 9700kg/21384lb
