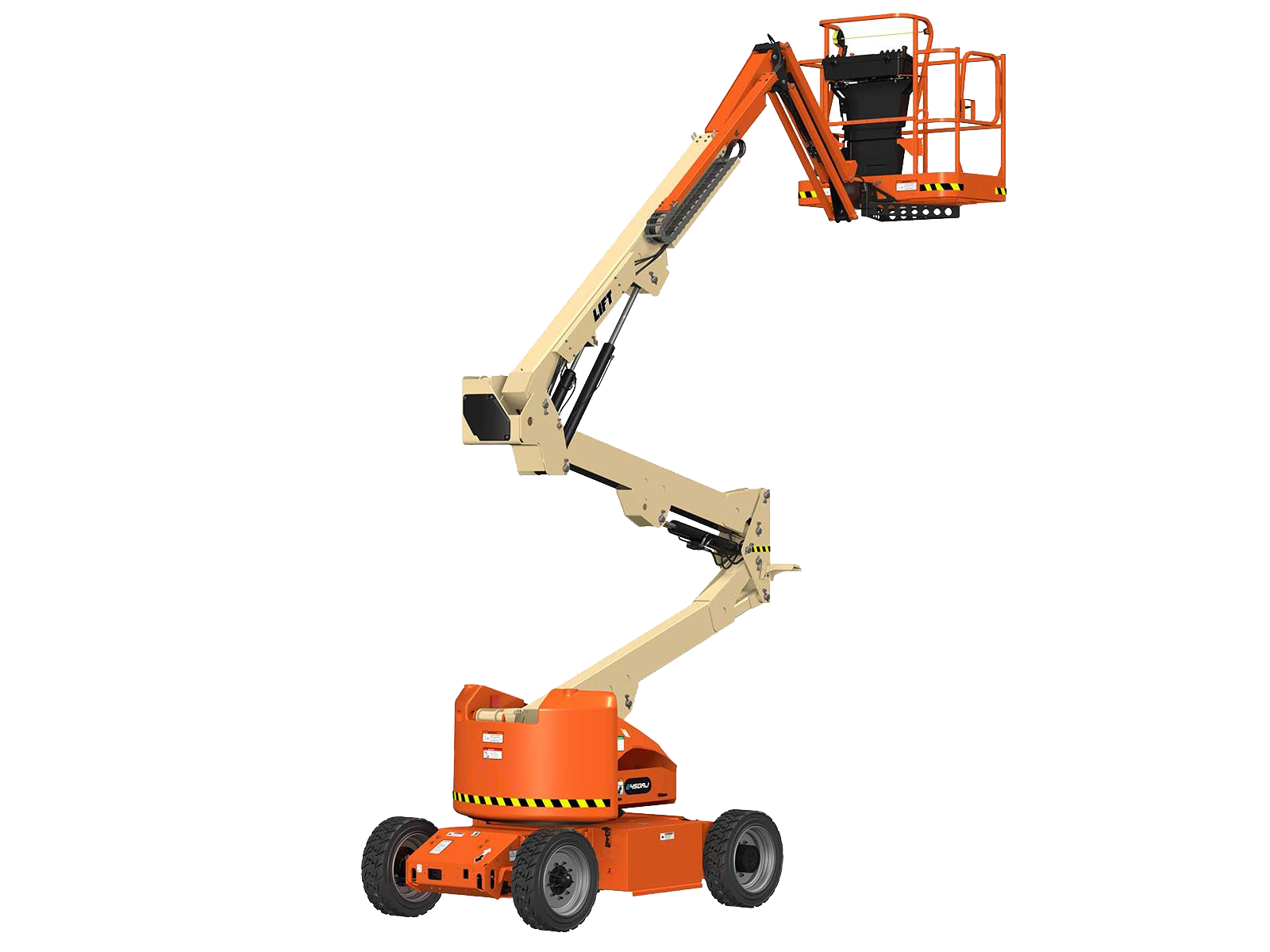

E450AJ

E450AJ

Maximum work height13.72 m

Safety working load226.80 kg

Overview

Specifications

Related Products

Leave Message

Key Features

  • Accessibility – up and over access, optional jib.

  • Maneuverability – move over uneven surfaces with Automatic Traction Control.

  • Productivity – work longer with longer duty cycles.

  • Environmentally friendly – zero emissions.

  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.


Specifications

Power Source
Batteries8 x 6V, 370 A-h
Electrical System48 Volts DC
Performance
Drive Speed - Platform Lowered3.2 mph / 5.15 km/h
Gradeability - 2WD30 %
Platform Capacity500 lb / 226.80 kg
Platform Capacity - Unrestricted500 lb / 226.80 kg
Swing360 Degrees
Swing TypeNon-Continuous
Turning Radius - Outside10 ft 4 in. / 3.15 m
Jib - Range of Articulation141 Degrees
Dimensional Data
Ground Clearance8 in. / 0.2 m
Machine Height6 ft 7 in. / 2.01 m
Machine Length21 ft 2 in. / 6.45 m
Machine Width5 ft 9 in. / 1.75 m
Platform Dimension A2 ft 6 in. / 0.76 m
Platform Dimension B5 ft / 1.52 m
Tailswing0 in. / 0 m
Tire Size240/55-17.5 Foam Filled
Wheelbase6 ft 7 in. / 2.01 m
Reach Specifications
Horizontal Jib Rotation0 Degrees
Horizontal Outreach23 ft 9 in. / 7.24 m
Platform Height45 ft / 13.72 m
Up and Over Height25 ft 3 in. / 7.7 m
General
Capacity - Hydraulic Reservoir4 gal. / 15.14 L
Machine Weight14400 lb / 6531.73 kg
Maximum Ground Bearing Pressure110 psi / 7.70 Kg/cm2
