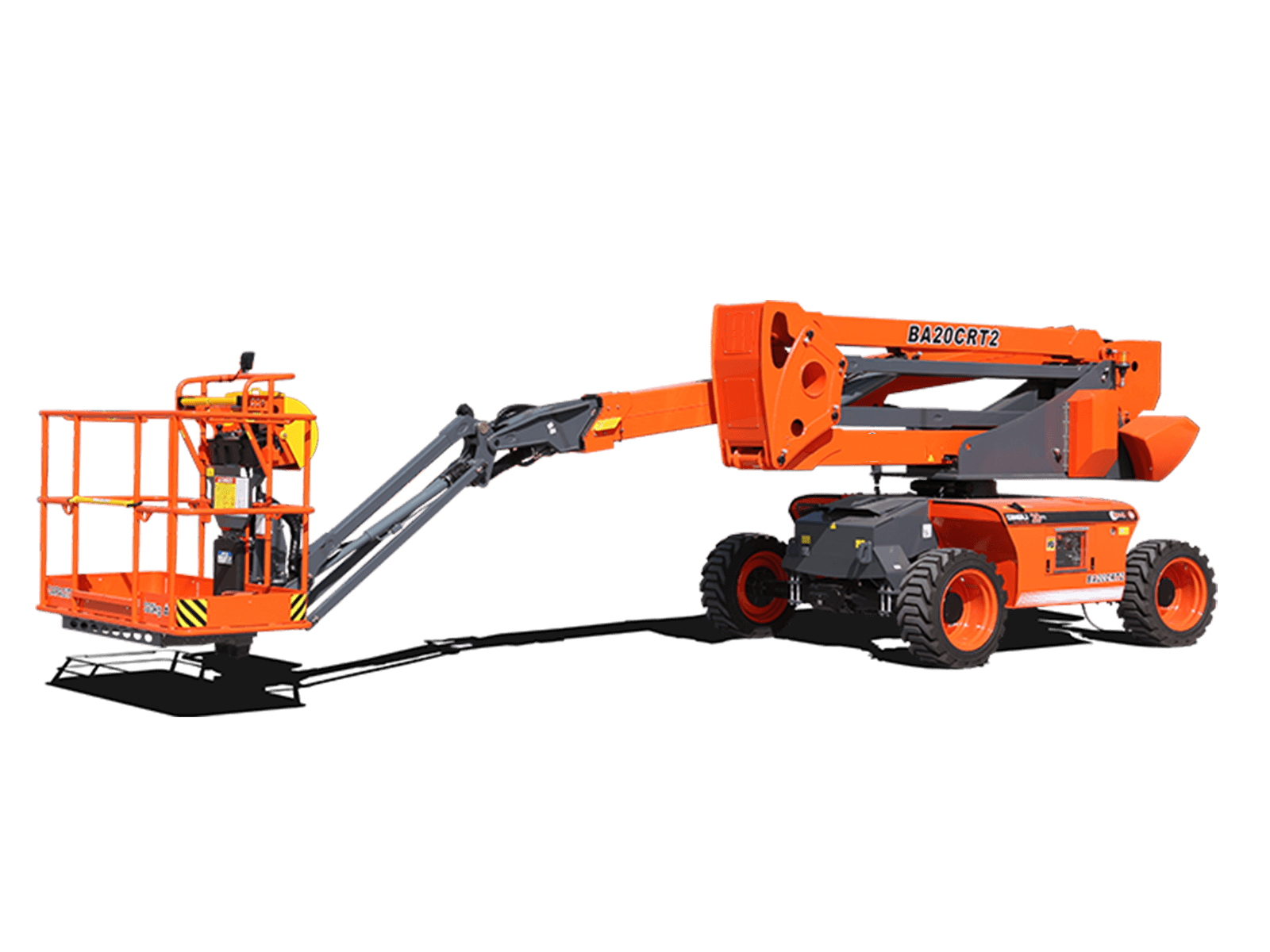

BA20CRT2

BA20CRT2

Maximum work height20.15m

Safety working load320kg

Overview

Specifications

Related Products

Leave Message

Key Features

  • Below ground reachable, large range of horizontal outreach;

  • Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;

  • Equipped with integrated axle, four-wheel drive & two-wheel steering;

  • Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;

  • Driveable at full height with large load of 320kg;

  • Suitable for standard container transport;

  • Equipped with 18.2kw low-power engine.


Specifications

  • Max. Working Height: 20.15m/66ft 11in

  • Max. Platform Height: 18.15m/59ft 6in

  • Max. Operating Range(+0.6m): 11.13m/36ft 6in

  • Max. Platform Range: 10.53m/34ft 6in

  • Max. Up And Over Clearance: 8.18m/26ft 10in

  • Max. Down Probing Depth: 1.25m/4ft 1in

  • Flatbed Transport Dimensions (L×W×H): 6.41m×2.44mx2.59m/21ft×8ft×8ft 6in

  • Standard Container Transport: All Applicable

  • Platform Size(Length×Width): 1.83m×0.79m/6ft×2ft 7in

  • S.W.L(Unrestricted/Restricted): 320kg/705lb

  • Max. Occupants: 2

  • Overall Weight: 8450kg/18629lb
