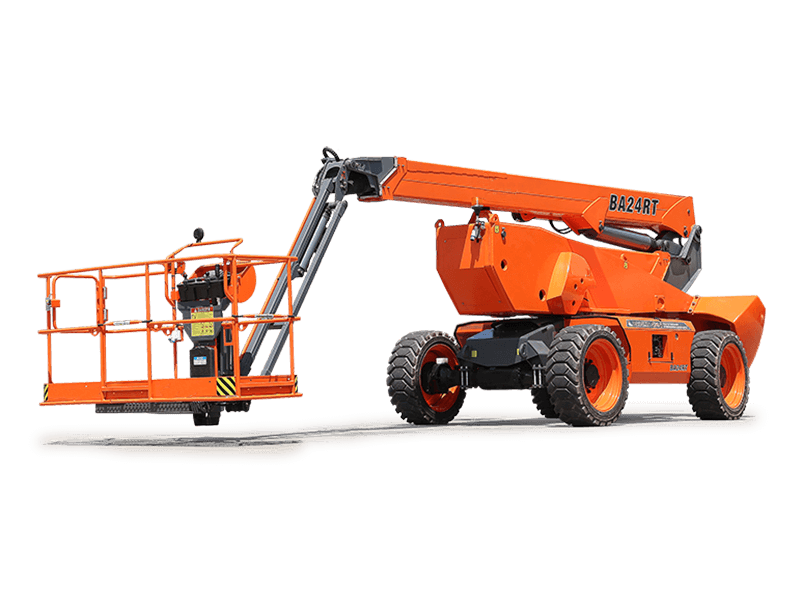

Below ground reachable, large range of horizontal outreach;
Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;
Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance;
Component downward design with lowered center of gravity;
Suitable for standard container transport;
Equipped with 55.4kw high power engine, gradeability up to 45%
Max. Working Height: 24.30m/79ft 9in
Max. Platform Height: 22.30m/73ft 2in
Max. Operating Range(+0.6m): 17.10m/56ft 1in
Max. Platform Range: 16.50m/54ft 2in
Max. Up And Over Clearance: 9.14m/30ft
Max. Down Probing Depth: 4.03m/13ft 3in
Overall Length(Stowed): 9.83m/32ft 3in
Overall Length(Transport): 10.03m/32ft 11in
Overall Width(Stowed): 2.50m/8ft 2in
Overall Width(Transport): 2.28m/7ft 6in
Overall Height(Stowed): 2.89m/9ft 6in
Overall Height(Transport): 2.61m/8ft 7in
Platform Size(Length×Width): 2.44m×0.91m/8ft×3ft
S.W.L(Unrestricted/Restricted): 300kg/661lb
Max. Occupants: 2
Overall Weight: 17200kg/37919lb
