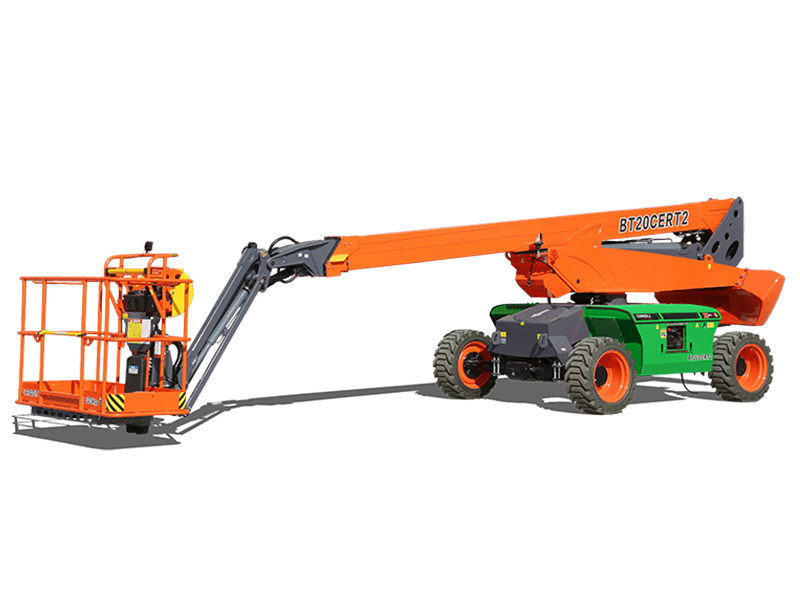

Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;
Equipped with integrated axle, four-wheel drive & two-wheel steering;
Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;
Driveable at full height with large load of 320kg;
Suitable for standard container transport;
Optionally equipped with 48V350Ah high-capacity lithium battery packs, 1.5-hour fast charging.
Max. Working Height: 20.23m/66ft 4in
Max. Platform Height: 18.23m/60ft
Max. Operating Range(+0.6m): 13.36m/44ft
Max. Platform Range: 12.76m/41ft 10in
Flatbed Transport Dimensions (L×W×H): 7.63m×2.44m×2.68m/25ft×8ft×9ft
Standard Container Transport: All Applicable
Platform Size(Length×Width): 1.83m×0.79m/6ft×2ft 7in
S.W.L(Unrestricted/Restricted): 320kg/705lb
Max. Occupants: 2
Overall Weight: 8600kg/18959lb
