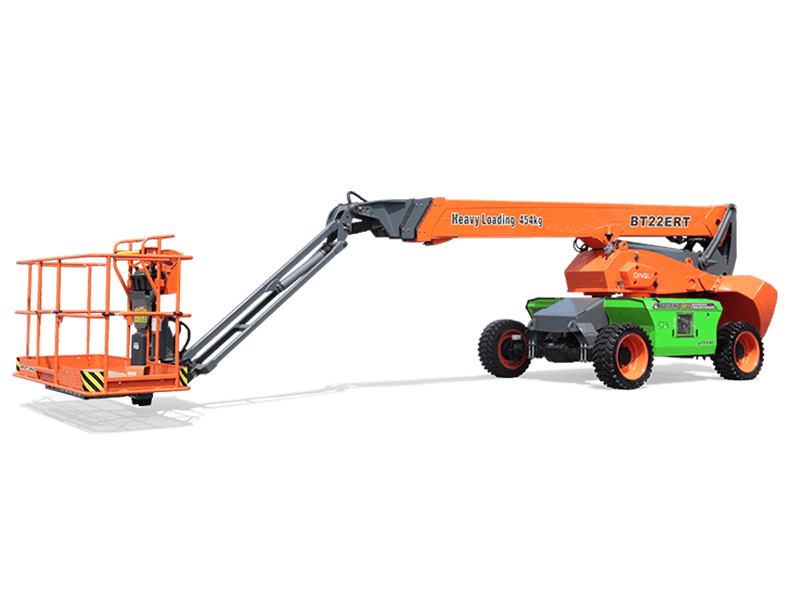

Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;
Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance;
Component downward design with lowered center of gravity;
Suitable for standard container transport;
Equipped with 80V520Ah high-capacity lithium battery packs, 1.5-hour fast charging.
Max. Working Height: 22.51m/73ft 10in
Max. Platform Height: 20.51m/67ft 4in
Max. Operating Range(+0.6m): 17.28m/56ft 8in
Max. Platform Range: 16.68m/54ft 9in
Overall Length(Stowed): 10.16m/33ft 4in
Overall Length(Transport): 10.36m/34ft
Overall Width(Stowed): 2.50m/8ft 2in
Overall Width(Transport): 2.28m/7ft 6in
Overall Height(Stowed): 2.65m/8ft 8in
Overall Height(Transport): 2.46m/8ft 1in
Platform Size(Length×Width): 2.44m×0.91m/8ft×3ft
S.W.L(Unrestricted/Restricted): 454kg/1000lb
Max. Occupants: 3
Overall Weight: 13200kg/29101lb
