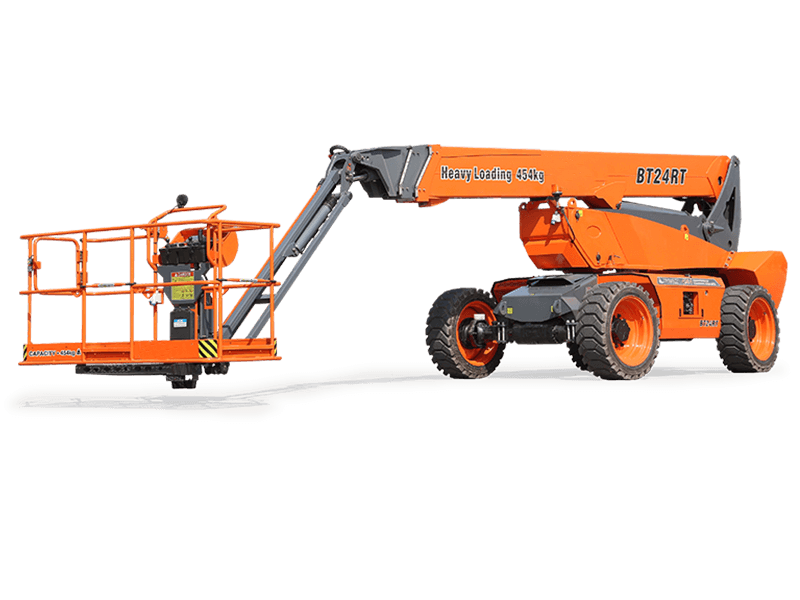

Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;
Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance;
Component downward design with lowered center of gravity;
Suitable for standard container transport;
Equipped with 55.4kw high power engine, gradeability up to 45%.
Max. Working Height: 24.80m/81ft 4in
Max. Platform Height: 22.80m/74ft 10in
Max. Operating Range(+0.6m): 17.90m/58ft 9in
Max. Platform Range: 17.30m/56ft 9in
Overall Length(Stowed): 10.25m/33ft 8in
Overall Length(Transport): 10.81m/35ft 6in
Overall Width(Stowed): 2.50m/8ft 2in
Overall Width(Transport): 2.28m/7ft 6in
Overall Height(Stowed): 2.87m/9ft 5in
Overall Height(Transport): 2.59m/8ft 6in
Platform Size(Length×Width): 2.44m×0.91m/8ft×3ft
S.W.L(Unrestricted/Restricted): 454kg/1000lb
Max. Occupants: 3
Overall Weight: 14300kg/31526lb
