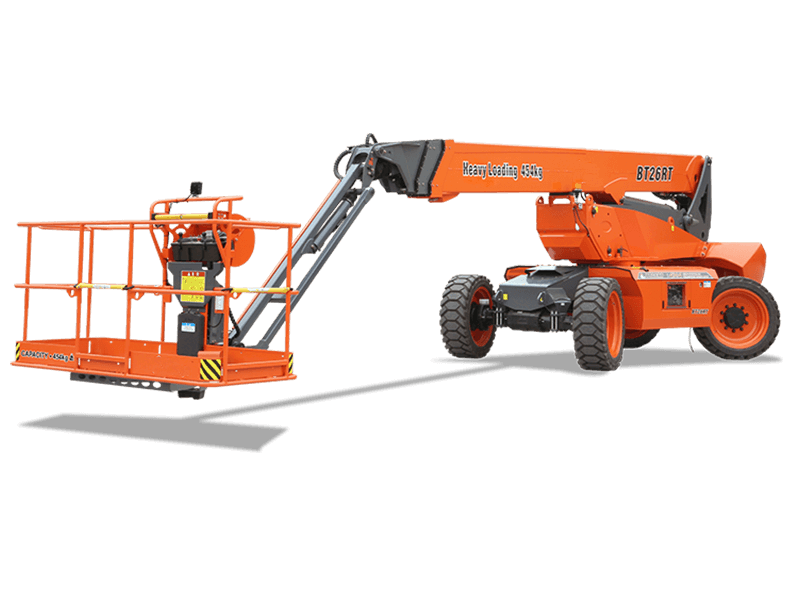

● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;
● Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance;
● Component downward design with lowered center of gravity;
● Suitable for standard container transport;
● Equipped with 55.4kw high power engine, gradeability up to 45%.
Max. Working Height: 26.30m/86ft 3in
Max. Platform Height: 24.30m/79ft 9in
Max. Operating Range(+0.6m): 19.50m/64ft
Max. Platform Range: 18.90m/62ft
Overall Length(Stowed): 10.82m/35ft 6in
Overall Length(Transport): 10.77m/35ft 4in
Overall Width(Stowed): 2.50m/8ft 2in
Overall Width(Transport): 2.28m/7ft 6in
Overall Height(Stowed): 2.87m/9ft 5in
Overall Height(Transport): 2.59m/8ft 6in
Platform Size(Length×Width): 2.44m×0.91m/8ft×3ft
S.W.L(Unrestricted/Restricted): 454kg/1000lb
Max. Occupants: 3
Overall Weight: 16090kg/35472lb
