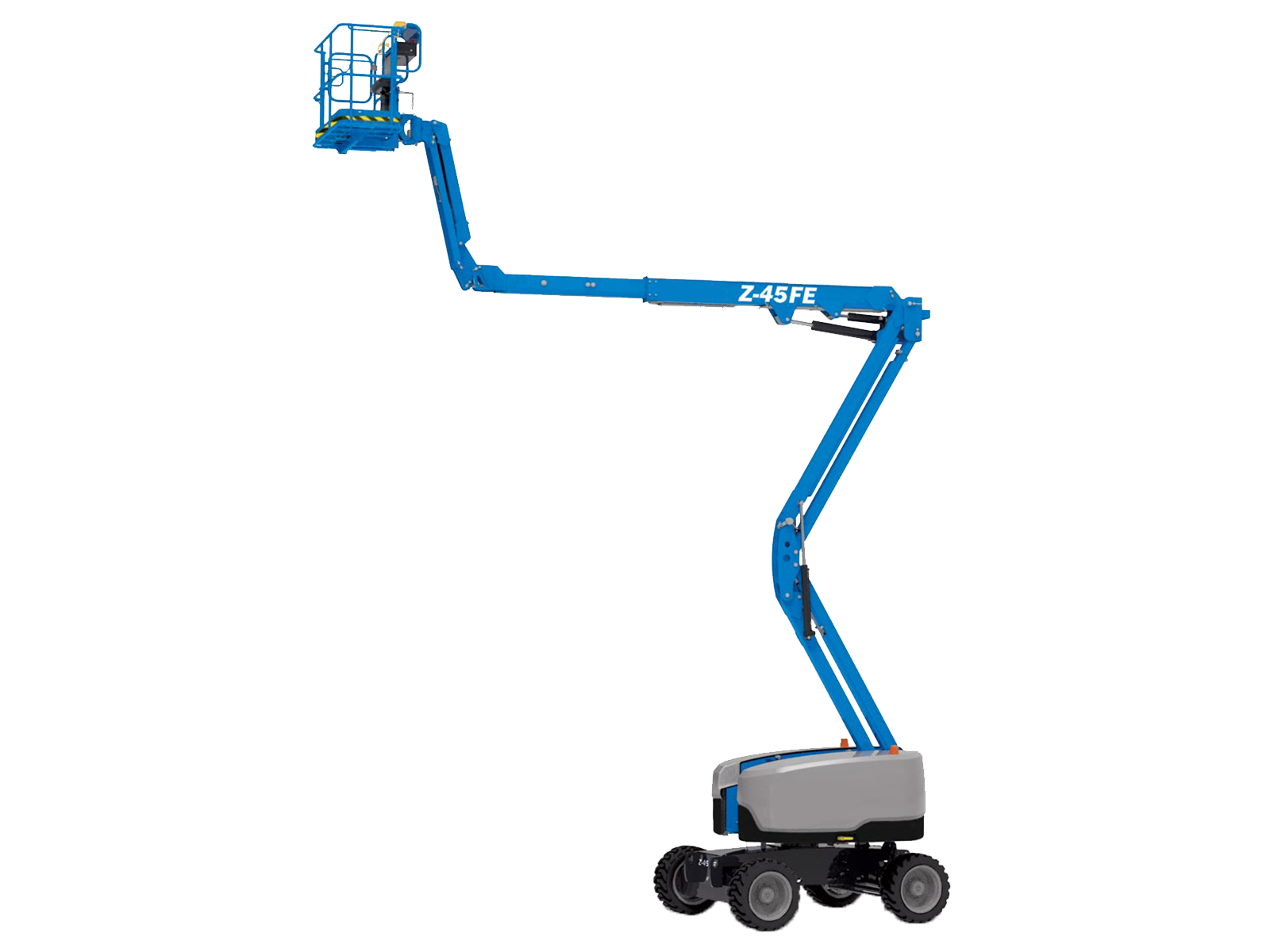

Two machines in one, the Genie Z-45 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.
Feature
Full-time active oscillating axle helps maintain traction on rough terrain.
4WD and 45% gradeability for superior terrainability.
High-efficiency AC drive system for enhanced driving performance and simplified maintenance.
Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility.
Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance.
5 ft (1.52 m) articulating jib with a 135° vertical rotation to accurately position workers.
| Specification | Value |
|---|---|
| Max Working Height | 51 ft 8 in | 15.92 m |
| Max Horizontal Reach | 22 ft 9 in | 6.94 m |
| Max Up and Over Clearance (riser extended) | 24 ft 7 in | 7.50 m |
| Platform Capacity | 660 lb | 300 kg |
