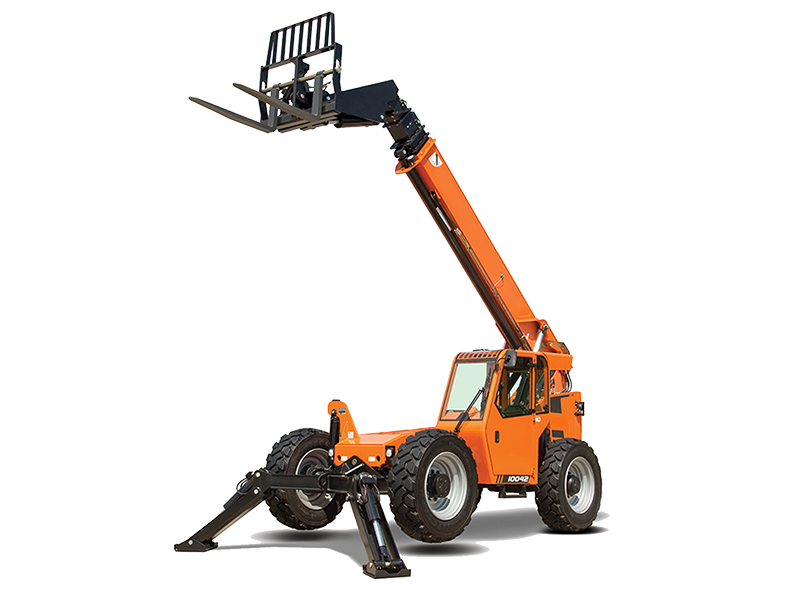

New, intuitive single joystick controls all boom functions.
Maximize productivity with improved boom speeds.
Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning.
Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load.
Greater job site versatility—rear counterweight includes an integrated tow hitch.
Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations.
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Maximum Lift Capacity: 10000 lb / 4535.92 kg
Outriggers Up Max Lift Height: 42 ft 1 in. / 12.83 m
Maximum Lift Height: 42 ft 1 in. / 12.83 m
Maximum Reach: 26 ft 7 in. / 8.1 m
| Performance | |
| Drawbar Pull | 24500 lb / 11113.01 kg |
| Frame Leveling | 10 Degrees |
| Outriggers Up Lift Capacity Full Height | 6000 lb / 2721.55 kg |
| Outriggers Up Lift Capacity Full Reach | 2000 lb / 907.18 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 10000 lb / 4535.92 kg |
| Outriggers Up Max Lift Height | 42 ft 1 in. / 12.83 m |
| Outriggers Up Max Forward Reach | 26 ft 7 in. / 8.1 m |
| Lift Capacity at Full Height | 6000 lb / 2721.55 kg |
| Lift Capacity at Max Reach | 6000 lb / 2721.55 kg |
| Maximum Reach | 26 ft 7 in. / 8.1 m |
| Maximum Lift Height | 42 ft 1 in. / 12.83 m |
| Outriggers or Stabilizers | Yes |
| Outside Turning Radius | 14 ft 2 in. / 4.32 m |
| Speed - Maximum Lift | 16.4 sec. |
| Speed - Maximum Lower | 15 sec. |
| Speed - Maximum Telescope In | 15.1 sec. |
| Speed - Maximum Telescope Out | 17.2 sec. |
| Speed - Maximum Travel | 20 mph / 32.19 km/h |
| Dimensional Data | |
| Ground Clearance | 1 ft 6 in. / 0.46 m |
| Machine Height | 8 ft 4 in. / 2.54 m |
| Machine Length | 20 ft 8 in. / 6.3 m |
| Machine Width | 8 ft 6 in. / 2.59 m |
| Tire Size | 400/75-28 |
| Wheelbase | 10 ft / 3.04 m |
