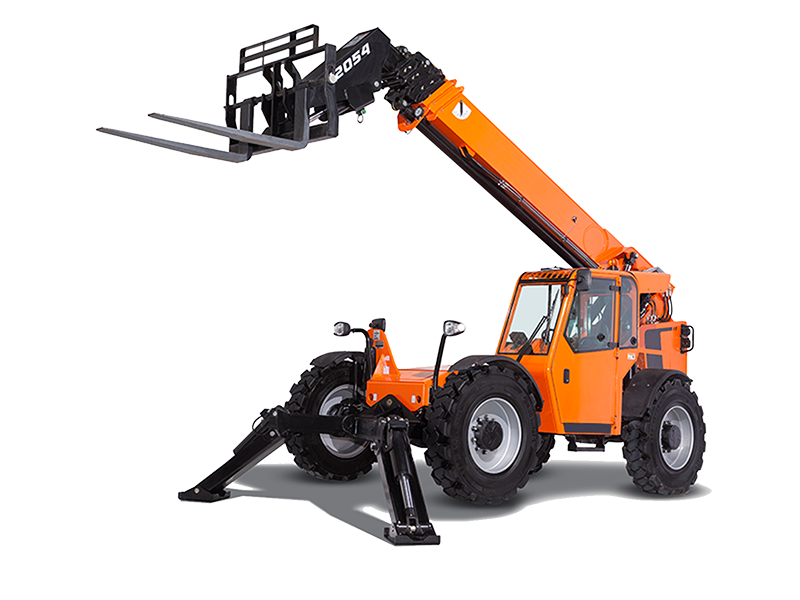

Reduce Operator Fatigue: Single joystick and integrated arm rest.
Enhance Operator Comfort: Optional air conditioning for cab.
Increase Confidence During Load Placement: Stabil-Trak rear axle stabilization system.
Lower Maintenance Costs: Optional 74 hp engine doesn’t require diesel exhaust fluid (DEF) and meets Tier 4 Final regulations.
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Maximum Lift Capacity: 12000 lb / 5443.11 kg
Outriggers Up Max Lift Height: 42 ft / 12.8 m
Maximum Lift Height: 53 ft 2 in. / 16.21 m
Maximum Reach: 38 ft 10 in. / 11.84 m
| Performance | |
| Drawbar Pull | 30000 lb / 13607.77 kg |
| Frame Leveling | 10 Degrees |
| Outriggers Up Lift Capacity Full Height | 7500 lb / 3401.94 kg |
| Outriggers Up Lift Capacity Full Reach | 2000 lb / 907.18 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 12000 lb / 5443.11 kg |
| Outriggers Up Max Lift Height | 42 ft / 12.8 m |
| Outriggers Up Max Forward Reach | 26 ft 6 in. / 8.08 m |
| Lift Capacity at Full Height | 5000 lb / 2267.96 kg |
| Lift Capacity at Max Reach | 3500 lb / 1587.57 kg |
| Maximum Reach | 38 ft 10 in. / 11.84 m |
| Maximum Lift Height | 53 ft 2 in. / 16.21 m |
| Outriggers or Stabilizers | Yes |
| Outside Turning Radius | 13 ft 10 in. / 4.22 m |
| Speed - Maximum Travel | 18.2 mph / 29.29 km/h |
| Dimensional Data | |
| Ground Clearance | 1 ft 6 in. / 0.46 m |
| Machine Height | 8 ft 4 in. / 2.54 m |
| Machine Length | 21 ft / 6.4 m |
| Machine Width | 8 ft 6 in. / 2.59 m |
| Tire Size | 400/75-28 |
| Wheelbase | 10 ft / 3.04 m |
