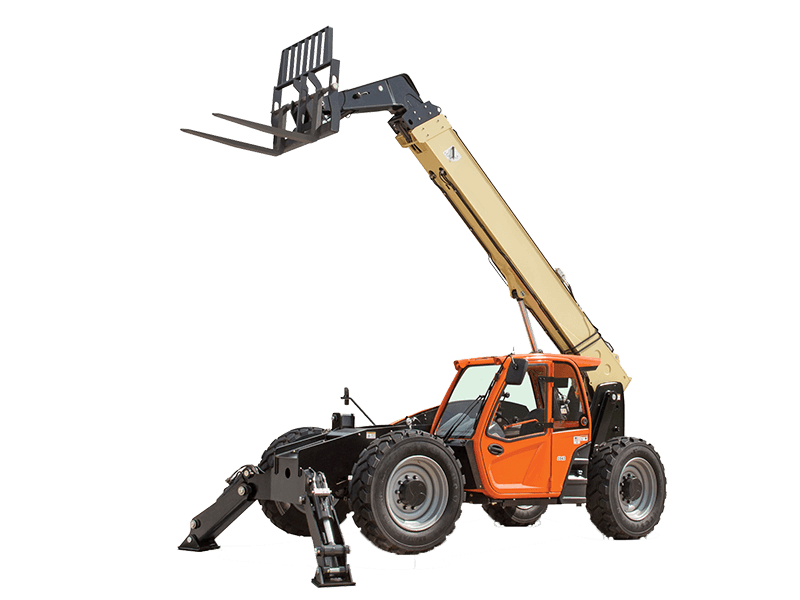

Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
Increased versatility—wide range of attachment options
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware
Maximum Lift Capacity: 10000 lb / 4535.92 kg
Outriggers Up Max Lift Height: 43 ft / 13.11 m
Maximum Lift Height: 43 ft / 13.11 m
Maximum Reach: 30 ft 5 in. / 9.27 m
| Performance | |
| Drawbar Pull | 24912 lb / 11299.89 kg |
| Frame Leveling | 10 Degrees |
| Outriggers Up Lift Capacity Full Height | 7000 lb / 3175.15 kg |
| Outriggers Up Lift Capacity Full Reach | 1100 lb / 498.95 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 10000 lb / 4535.92 kg |
| Outriggers Up Max Lift Height | 43 ft / 13.11 m |
| Outriggers Up Max Forward Reach | 30 ft 5 in. / 9.27 m |
| Lift Capacity at Full Height | 7000 lb / 3175.15 kg |
| Lift Capacity at Max Reach | 2700 lb / 1224.70 kg |
| Maximum Reach | 30 ft 5 in. / 9.27 m |
| Maximum Lift Height | 43 ft / 13.11 m |
| Outriggers or Stabilizers | Yes |
| Outside Turning Radius | 12 ft / 3.66 m |
| Speed - Maximum Lift | 13 sec. |
| Speed - Maximum Lower | 9 sec. |
| Speed - Maximum Telescope In | 13 sec. |
| Speed - Maximum Telescope Out | 15 sec. |
| Speed - Maximum Travel | 19 mph / 30.58 km/h |
| Dimensional Data | |
| Ground Clearance | 1 ft 5 in. / 0.43 m |
| Machine Height | 8 ft 4 in. / 2.54 m |
| Machine Length | 19 ft 9 in. / 6.02 m |
| Machine Width | 8 ft 1 in. / 2.46 m |
| Tire Size | 400/75-28 |
| Wheelbase | 11 ft 3 in. / 3.43 m |
