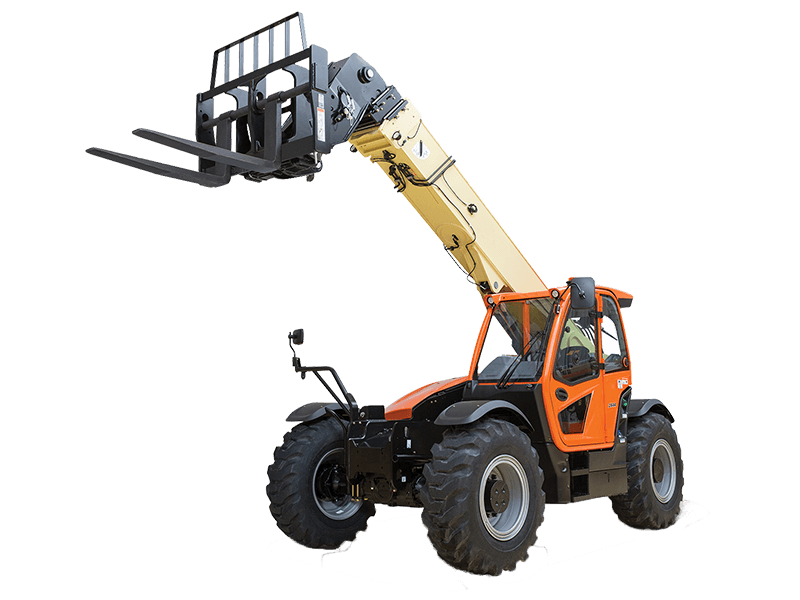

1644 HIGH-CAPACITY MODEL
Maximum work height13.28 m
Safety working load7098.72 kg
Maximum work height13.28 m
Safety working load7098.72 kg
Operator Comfort - Spacious cab with enhanced visibility, 2-speed hydrostatic transmission and optional boom float and ride control
Operator Confidence - Precision gravity lowering system, soft stop boom control, optional reverse sensing system and reversing camera
Versatility - Integrated tow hitch and a wide range of attachments for more options on the job site
SmartLoad Technology - Automatic attachment recognition and real-time load monitoring for enhanced productivity
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware
Maximum Lift Capacity: 15650 lb / 7098.72 kg
Maximum Lift Height: 43 ft 7 in. / 13.28 m
Maximum Reach: 31 ft 1 in. / 9.47 m
| Performance | |
| Drawbar Pull | 23000 lb / 10432.62 kg |
| Frame Leveling | 8 Degrees |
| Lift Capacity at Full Height | 6750 lb / 3061.75 kg |
| Lift Capacity at Max Reach | 2000 lb / 907.18 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 15650 lb / 7098.72 kg |
| Maximum Lift Height | 43 ft 7 in. / 13.28 m |
| Maximum Reach | 31 ft 1 in. / 9.47 m |
| Outriggers or Stabilizers | No |
| Outside Turning Radius | 13 ft 2 in. / 4.01 m |
| Speed - Maximum Lift | 18.3 sec. |
| Speed - Maximum Lower | 13.6 sec. |
| Speed - Maximum Telescope In | 12.3 sec. |
| Speed - Maximum Telescope Out | 15.8 sec. |
| Speed - Maximum Travel | 20 mph / 32.19 km/h |
| Dimensional Data | |
| Ground Clearance | 1 ft 7 in. / 0.48 m |
| Machine Height | 8 ft 9 in. / 2.67 m |
| Machine Length | 20 ft 3 in. / 6.17 m |
| Machine Width | 8 ft 1 in. / 2.46 m |
| Tire Size | 17.5-25 SGG |
| Wheelbase | 10 ft 7 in. / 3.23 m |
