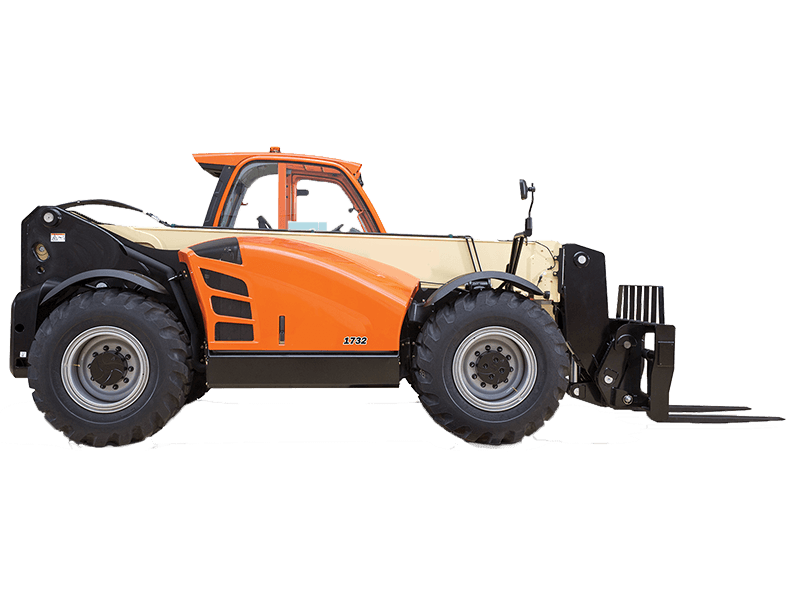

Maximum work height9.65 m
Safety working load7599.94 kg
Operator Comfort - Spacious cab with enhanced visibility, 2-speed hydrostatic transmission and optional boom float and ride control
Operator Confidence - Precision gravity lowering system, soft stop boom control, optional reverse sensing system and reversing camera
Versatility - Integrated tow hitch and a wide range of attachments for more options on the job site
SmartLoad Technology - Automatic attachment recognition and real-time load monitoring for enhanced productivity
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware
Maximum Lift Capacity: 16755 lb / 7599.94 kg
Maximum Lift Height: 31 ft 8 in. / 9.65 m
Maximum Reach: 18 ft 7 in. / 5.66 m
Performance | |
Drawbar Pull | 23000 lb / 10432.62 kg |
Frame Leveling | 8 Degrees |
Lift Capacity at Full Height | 9900 lb / 4490.56 kg |
Lift Capacity at Max Reach | 5500 lb / 2494.76 kg |
Load Center | 2 ft / 0.61 m |
Maximum Lift Capacity | 16755 lb / 7599.94 kg |
Maximum Lift Height | 31 ft 8 in. / 9.65 m |
Maximum Reach | 18 ft 7 in. / 5.66 m |
Outriggers or Stabilizers | No |
Outside Turning Radius | 13 ft 2 in. / 4.01 m |
Speed - Maximum Lift | 14.1 sec. |
Speed - Maximum Lower | 10.9 sec. |
Speed - Maximum Telescope In | 10.9 sec. |
Speed - Maximum Telescope Out | 13.2 sec. |
Speed - Maximum Travel | 20 mph / 32.19 km/h |
Dimensional Data | |
Ground Clearance | 1 ft 7 in. / 0.48 m |
Machine Height | 8 ft 9 in. / 2.67 m |
Machine Length | 19 ft 5 in. / 5.92 m |
Machine Width | 8 ft 1 in. / 2.46 m |
Tire Size | 17.5-25 SGG |
Wheelbase | 10 ft 7 in. / 3.23 m |
