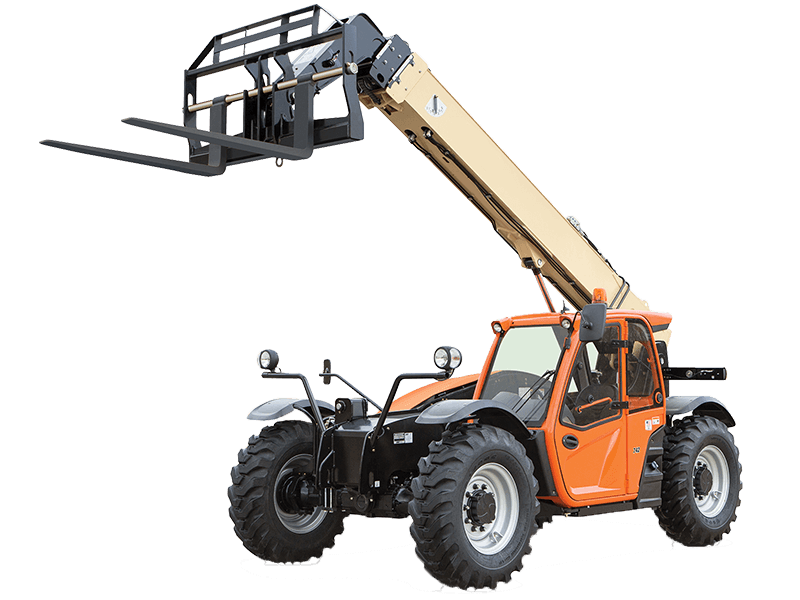

When choosing a JLG telehandler, you’ve got a powerful range of options.
The robust lineup includes compact, high-capacity and rotating telehandlers, along with a wide variety of attachments for even more versatility on the job site.
All JLG telehandlers offer best-in-class cabs with enhanced visibility and Tier 4 Final engines for fuel efficiency with less environmental impact.
Engine parts and other serviceable components are more easily accessible, so you can spend more time on the job and less time on routine maintenance.
With JLG telehandlers, you’ll keep productivity high all day long while enjoying lower cost of ownership.
Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
Maximum Lift Capacity: 7000 lb / 3175.15 kg
Maximum Lift Height: 42 ft / 12.8 m
Maximum Reach: 29 ft 1 in. / 8.86 m
| Performance | |
| Drawbar Pull | 19000 lb / 8618.26 kg |
| Lift Capacity at Full Height | 6000 lb / 2721.55 kg |
| Lift Capacity at Max Reach | 1000 lb / 453.59 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 7000 lb / 3175.15 kg |
| Maximum Lift Height | 42 ft / 12.8 m |
| Maximum Reach | 29 ft 1 in. / 8.86 m |
| Outriggers or Stabilizers | No |
| Outside Turning Radius | 12 ft / 3.66 m |
| Speed - Maximum Lift | 11.3 sec. |
| Speed - Maximum Lower | 9 sec. |
| Speed - Maximum Telescope In | 11.5 sec. |
| Speed - Maximum Telescope Out | 11 sec. |
| Speed - Maximum Travel | 18 mph / 28.97 km/h |
| Dimensional Data | |
| Ground Clearance | 1 ft 5 in. / 0.43 m |
| Machine Height | 8 ft / 2.44 m |
| Machine Length | 18 ft 11 in. / 5.77 m |
| Machine Width | 8 ft 1 in. / 2.46 m |
| Tire Size | 370/75-28 |
| Wheelbase | 11 ft 3 in. / 3.43 m |
| Power Source | |
| Capacity - Fuel Tank | 38.3 gal. / 144.98 L |
| Engine Horsepower | 74 hp / 55.20 kW |
| Engine Manufacturer | Cummins |
| Engine Model | QSF 3.8L Tier 4 Final |
| Maximum Engine RPM | 2500 rpm |
| General | |
| Axle-Front | High Bias, Limited Slip |
| Axle-Rear | Oscillating |
| Function Pump Type | Load Sensing Piston |
| Operating Vehicle Weight | 21476 lb / 9741.35 kg |
| Service Brake Type | Wet Multi-Disc |
| Transmission - Nr Forward Gears Standard | 4 |
| Transmission - Nr Reverse Gears | 3 |
| Transmission Type | Powershift |
