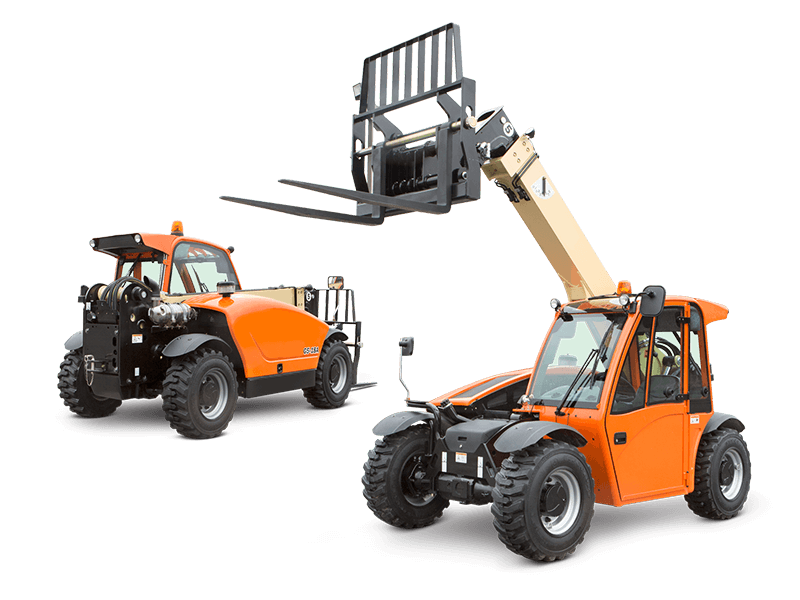

When choosing a JLG telehandler, you’ve got a powerful range of options.
The robust lineup includes compact, high-capacity and rotating telehandlers, along with a wide variety of attachments for even more versatility on the job site.
All JLG telehandlers offer best-in-class cabs with enhanced visibility and Tier 4 Final engines for fuel efficiency with less environmental impact.
Engine parts and other serviceable components are more easily accessible, so you can spend more time on the job and less time on routine maintenance.
With JLG telehandlers, you’ll keep productivity high all day long while enjoying lower cost of ownership.
Comfortable cab to reduce operator fatigue
Tight turning radius to maneuver through crowded jobsites
Fuel-efficient Tier 4 final Deutz engine
Maximum Lift Capacity: 5500 lb / 2494.76 kg
Maximum Lift Height: 18 ft 4 in. / 5.59 m
Maximum Reach: 10 ft 11 in. / 3.33 m
| Performance | |
| Breakout Force | 8900 lb / 4036.97 kg |
| Drawbar Pull | 8700 lb / 3946.25 kg |
| Lift Capacity at Full Height | 4400 lb / 1995.81 kg |
| Lift Capacity at Max Reach | 1850 lb / 839.15 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 5500 lb / 2494.76 kg |
| Maximum Lift Height | 18 ft 4 in. / 5.59 m |
| Maximum Reach | 10 ft 11 in. / 3.33 m |
| Outriggers or Stabilizers | No |
| Outside Turning Radius | 10 ft 7 in. / 3.23 m |
| Speed - Maximum Crowd | 2 sec. |
| Speed - Maximum Dump | 2.5 sec. |
| Speed - Maximum Lift | 6.8 sec. |
| Speed - Maximum Lower | 4.6 sec. |
| Speed - Maximum Telescope In | 3.8 sec. |
| Speed - Maximum Telescope Out | 6.7 sec. |
| Speed - Maximum Travel | 15 mph / 24.14 km/h |
| Towing Capacity | 6600 lb / 2993.71 kg |
| Dimensional Data | |
| Ground Clearance | 11 in. / 0.27 m |
| Machine Height | 6 ft 4 in. / 1.92 m |
| Machine Length | 10 ft 9 in. / 3.28 m |
| Machine Length (Forks) | 12 ft 6 in. / 3.82 m |
| Machine Width | 6 ft / 1.82 m |
| Tire Size | 12x16.5 Pneu |
| Wheelbase | 7 ft 6 in. / 2.29 m |
| Power Source | |
| Capacity - Coolant | 3.5 gal. / 13.25 L |
| Capacity - Engine Oil | 9.1 gal. / 34.45 L |
| Capacity - Fuel Tank | 24 gal. / 90.85 L |
| Engine Horsepower | 74 hp / 55.20 kW |
| Engine Manufacturer | Deutz |
| Engine Model | TD 2.9L L4 T4F |
| Maximum Engine RPM | 1800 rpm |
| General | |
| Axle-Front | High Bias, Limited Slip |
| Axle-Rear | Planetary |
| Capacity - Hydraulic Reservoir | 16 gal. / 60.57 L |
| Function Pump Type | Gear |
| Hydraulic System Flow | 19.1 gal/min. / 72.29 L/Min |
| Hydraulic System Pressure | 3500 psi / 245.11 Kg/cm2 |
| Operating Vehicle Weight | 11000 lb / 4989.52 kg |
| Service Brake Type | Wet Multi-Disc |
| Transmission - Nr Forward Gears Standard | 1 |
| Transmission - Nr Reverse Gears | 1 |
| Transmission Type | Hydrostatic |
