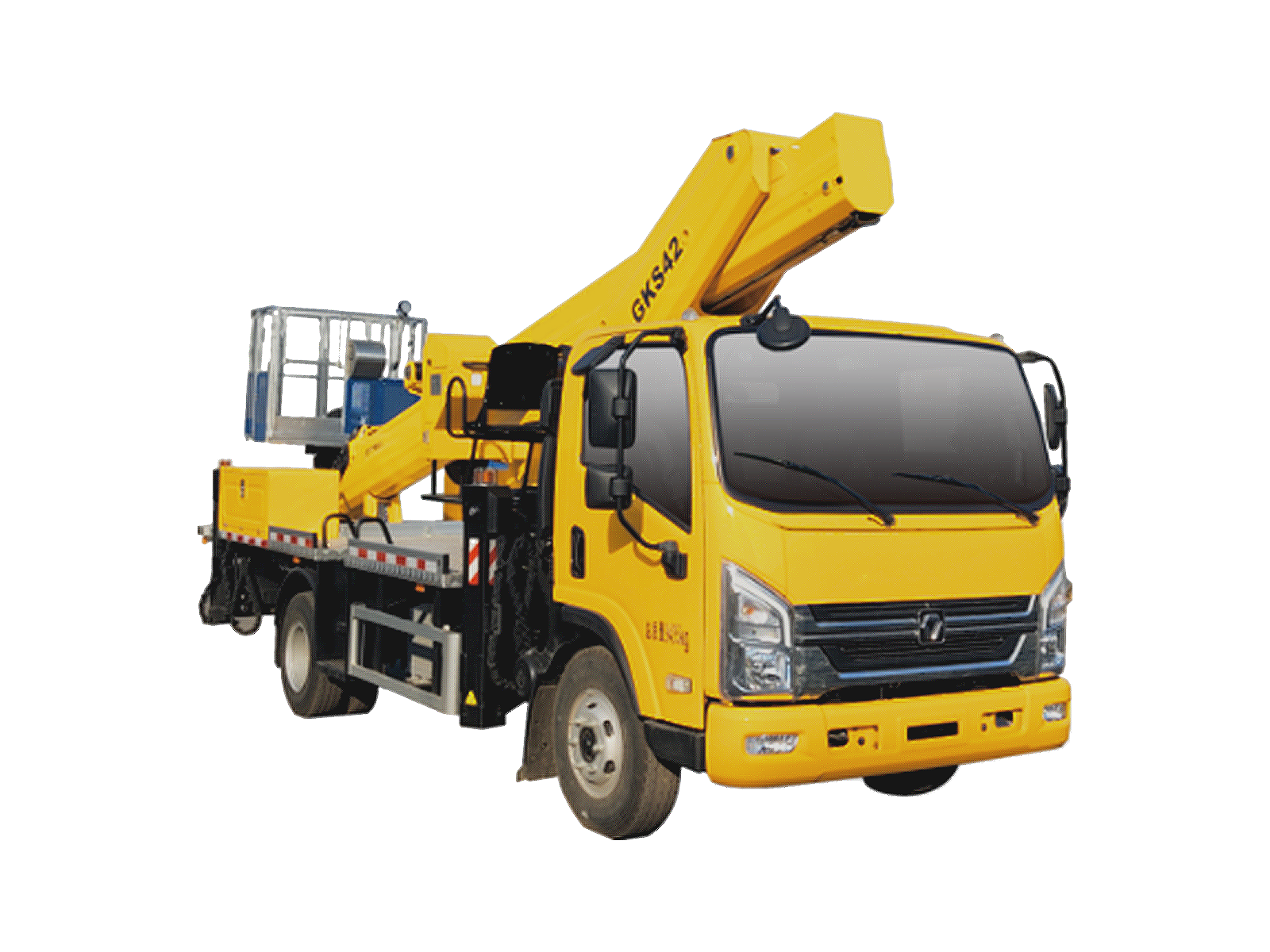

GK Series 16-42m Telescopic Boom Aerial Worker
Maximum work height16-42m
Safety working load≤400kg
Maximum work height16-42m
Safety working load≤400kg
Six-arm five-arm synchronous telescopic, high working efficiency.
Standard 1600mm aluminum alloy working bucket, personnel control space is large; Standard remote control operation, wide vision.
The integrated panel design of exit and turntable makes the operation more convenient and comfortable.
Optional unilateral operation, no extension leg operation, the vehicle safety performance is superior, high reliability.
The vehicle is connected to the Internet of Things platform to grasp the vehicle condition in real time.
Model | Maximum working height(m) | Maximum operating range(m) | Rated load(kg) | Traveling size（mm） | Engine power（Kw） |
GKS42B | 42 | 21 | 260 | 7849×2360×3250 | 120 |
GKS32F | 31.6 | 14.6 | 200 | 5005×2070×3130 | 103 |
GKS34A | 34 | 19 | 260 | 7025×2090×3090 | 107 |
GKS38A | 38 | 21 | 260 | 7790×2360×3295 | 120 |
GKS30C | 30 | 14.6 | 200 | 5995×2070×2900 | 103 |
GKS28D | 28 | 17 | 200 | 5995×2070×2800 | 103 |
GKS28C | 28 | 14.6 | 200 | 5995×2070×3090 | 103 |
GKS27A | 26.5 | 14.6 | 200 | 5995×2070×3030 | 90 |
GKS26A | 26 | 14.6 | 200 | 5995×2070×2930 | 103 |
GKS24A | 23.5 | 14.6 | 200 | 5995×2070×3110 | 103 |
GKS25E | 25 | 14.6 | 200 | 5995×2070×3000 | 90 |
GKS30B | 30 | 14.6 | 200 | 5995×2070×3095 | 90 |
GKS28B | 28 | 14.6 | 200 | 5995×2070×3050 | 90 |
GKS23B | 22.8 | 14.6 | 200 | 5995×2070×3015 | 85 |
GKS20A | 20.5 | 14.6 | 200 | 5995×2070×2950 | 85 |
GKS23A | 23.2 | 11.1 | 200 | 5995×2070×2950 | 85 |
GKS55A | 54.6 | 30 | 400 | 10300×2520×3920 | 162 |
GKS37A | 37 | 23 | 400 | 7980×2350×3130 | 115 |
GKS33 | 32.7 | 21 | 260 | 8440×2380×3270 | 115 |
GKS32C | 32 | 23 | 400 | 7180×2310×3130 | 110 |
GKS32A | 32.5 | 18 | 260 | 9880×2480×3685 | 162 |
GKS28A | 27.9 | 16.6 | 260 | 8355×2380×3200 | 115 |
GKS25C | 25.6 | 15.2 | 260 | 7770×2380×3200 | 115 |
GKS21B | 21.6 | 15.1 | 260 | 7600×2220×3300 | 112 |
GKS18F | 18 | 12.5 | 220 | 6950×2070×3000 | 83 |
GKS16C | 16.2 | 10.6 | 220 | 6960×2000×3210 | 85 |
